Automatic Transaxle - Overhaul [Ja5EL]
>>
Automatic Transaxle Disassembly
>>
Disassembly Components
>>
Notes
Disassembly Components: Notes

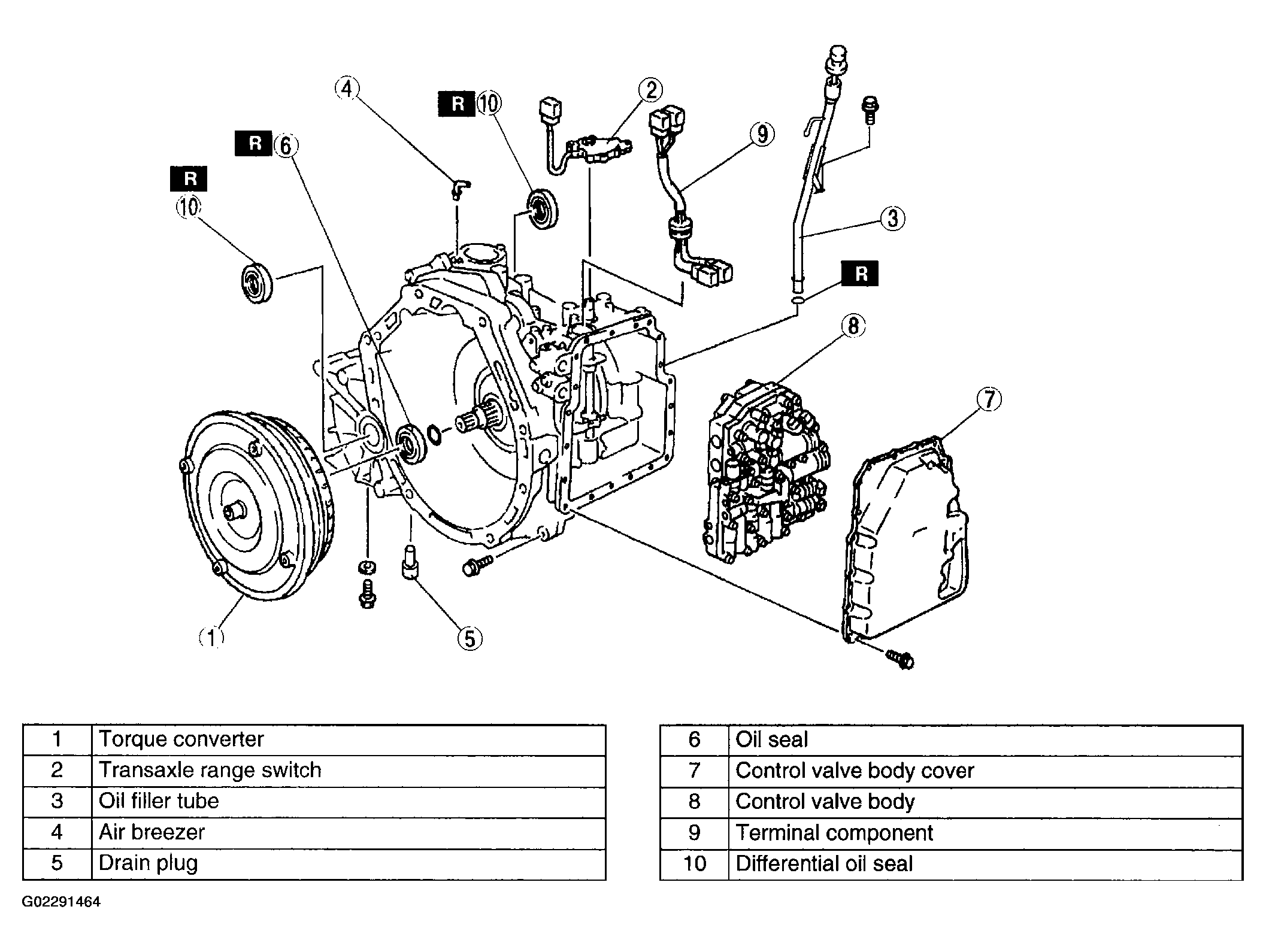

Fig 1: Identifying Transaxle External Components
Courtesy of MAZDA MOTORS CORP.

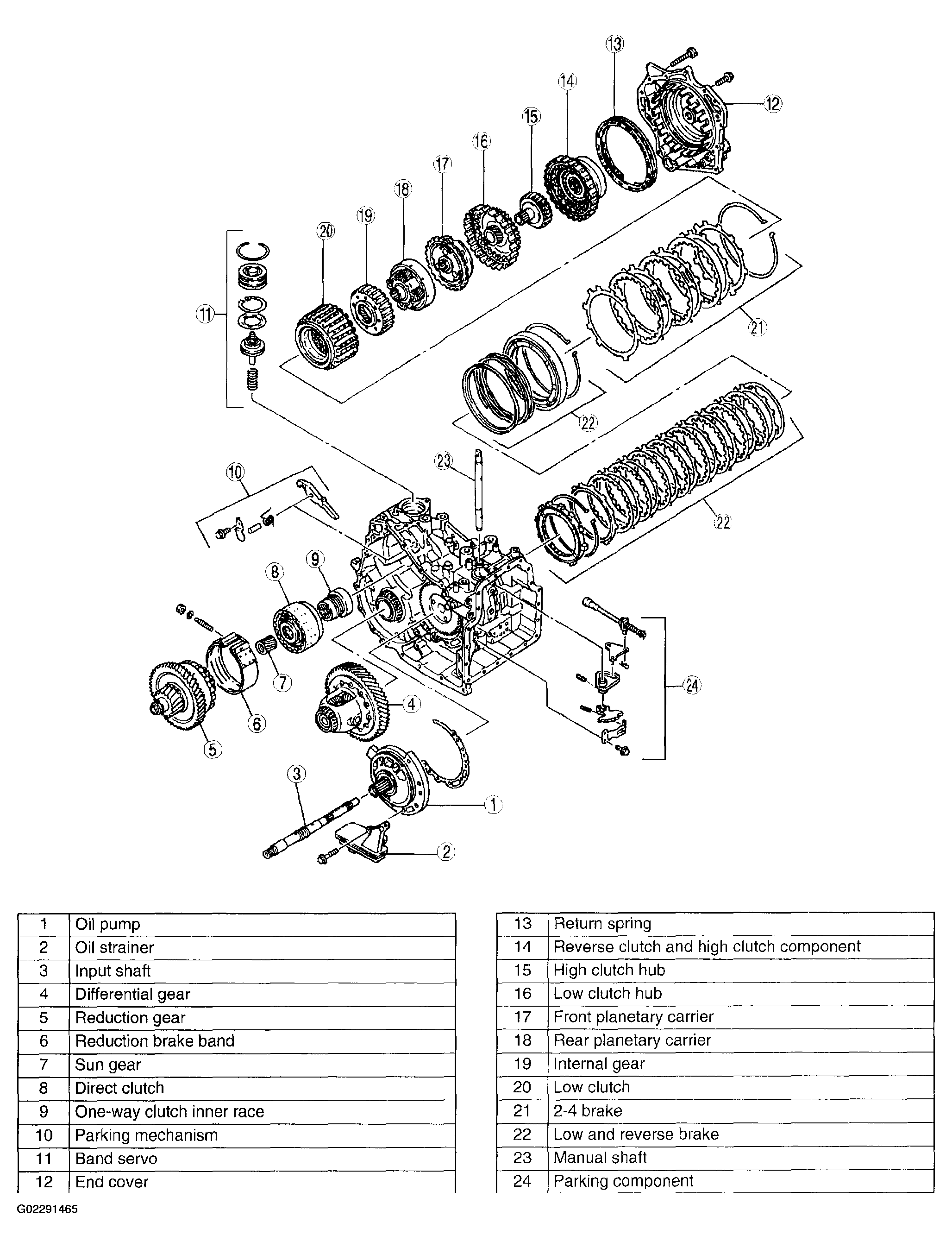

Fig 2: Identifying Transaxle Internal Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
