Automatic Transaxle Cross-Sectional View

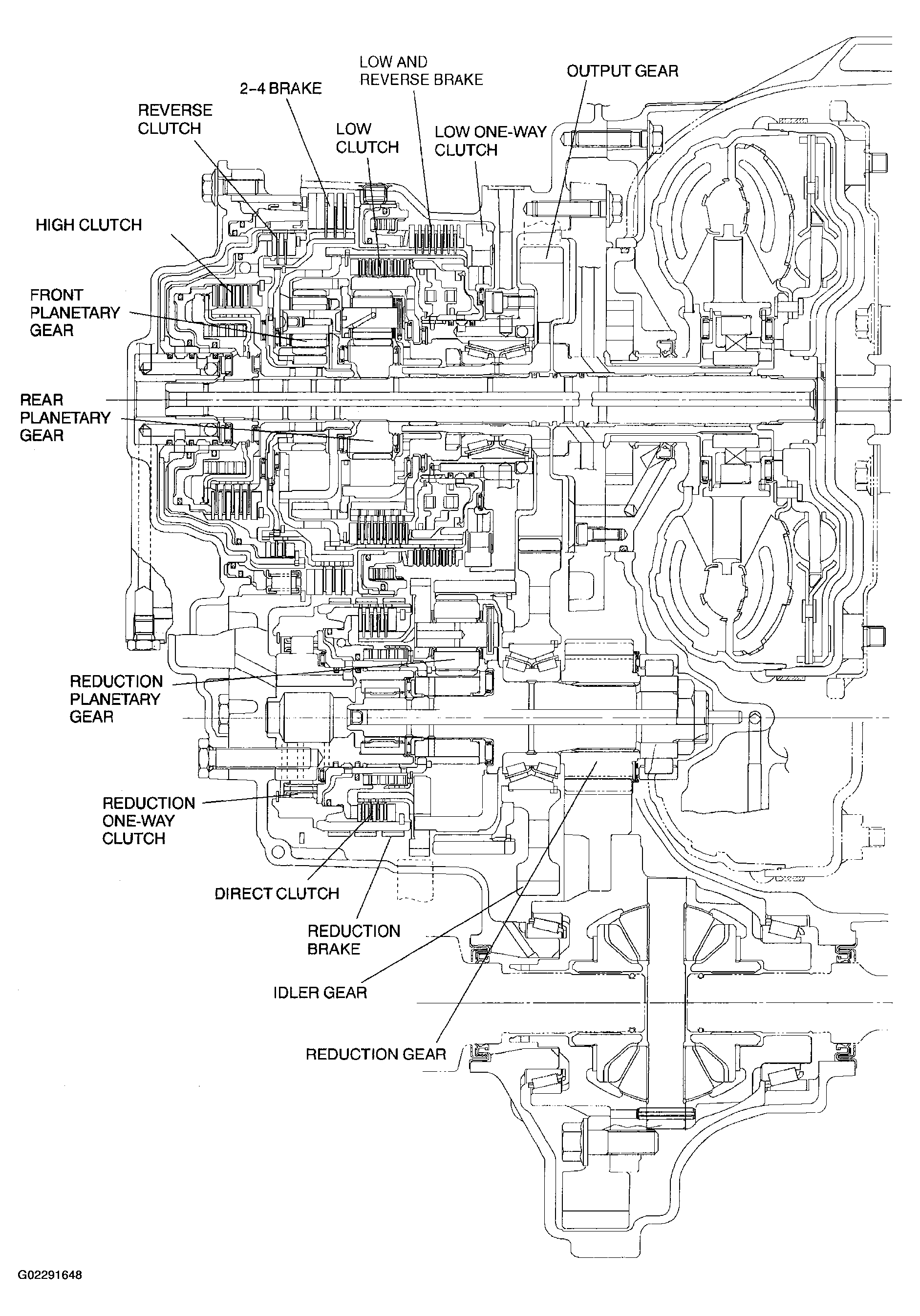

Fig 1: Transaxle Cross-Sectional View

G02291648

Courtesy of MAZDA MOTORS CORP.
