Road Test
>>

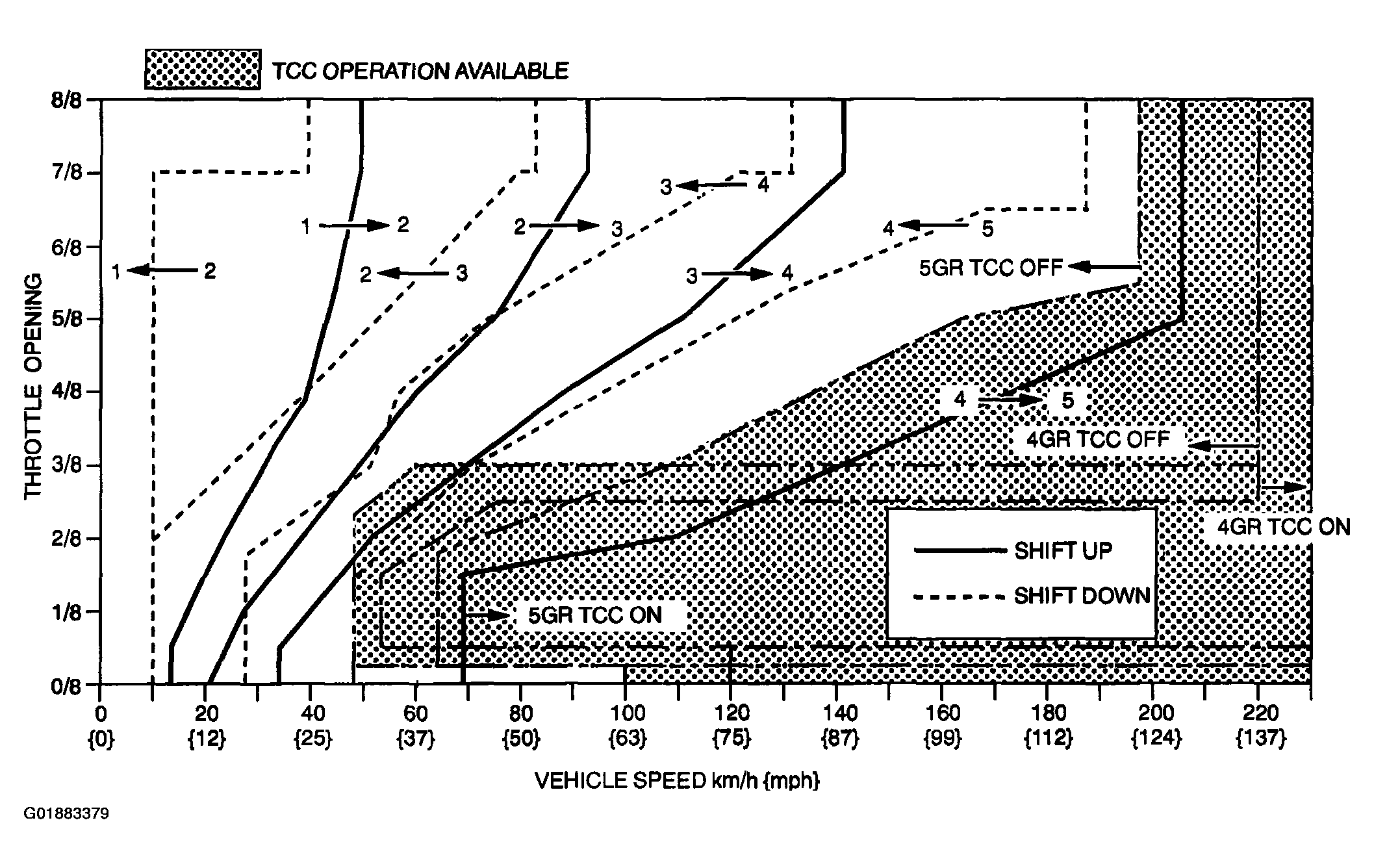

Typical Shift Diagram
Typical Shift Diagram
Fig 1: Shift Diagram Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
