Back flushing

  1. Using the power flushing equipment manufacturer's instructions, connect equipment so the flushing fluid flows in the opposite direction of normal fluid flow.
  2. Flush oil cooler/lines until discharge fluid is clean.
    CAUTION:
    • If the cooler can not be properly flushed using recommended equipment, send the radiator out for sublet cleaning or replace.

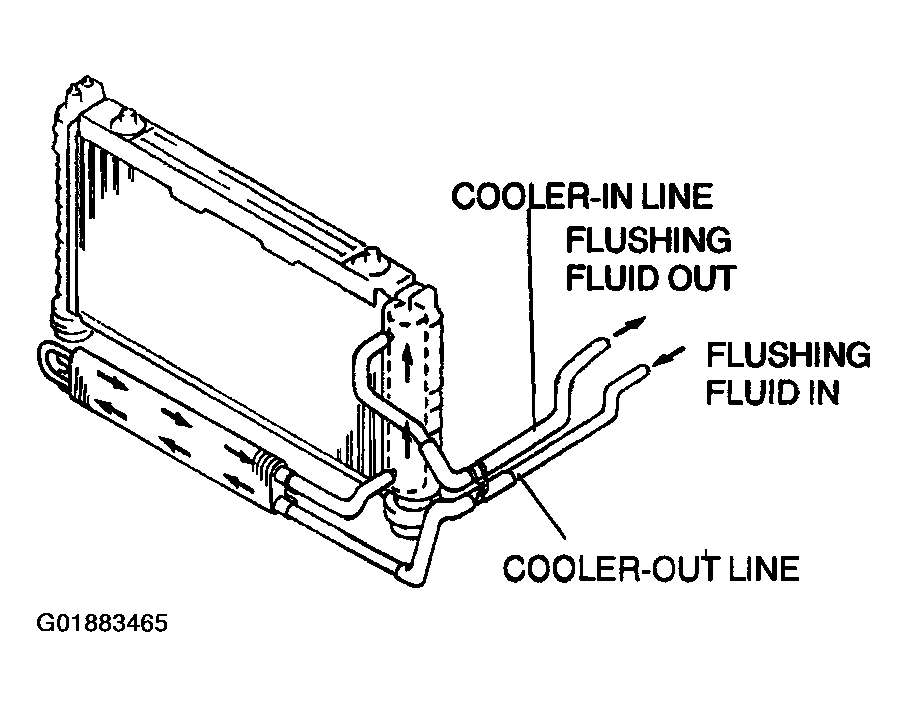

      Fig 1: Back Flushing Oil Cooler/Lines
      G01883465Courtesy of MAZDA MOTORS CORP.
