On-Vehicle Inspection

Disconnect the terminal component No. 2 connector.

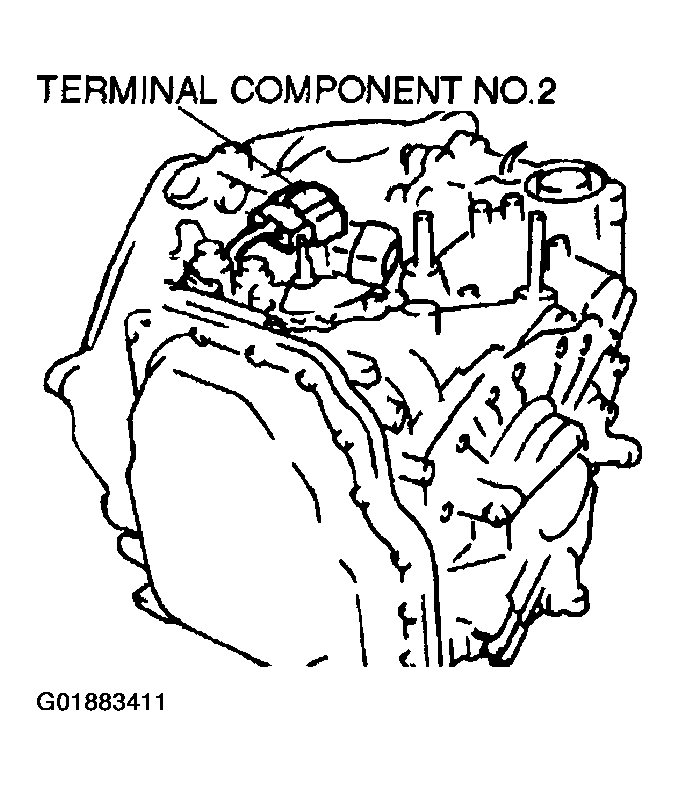

Fig 1: Locating Terminal Component No.2 Connector
Courtesy of MAZDA MOTORS CORP.
Measure resistance between the terminals E and F.
- If not as specified, inspect the input/turbine speed sensor. (See INSPECTION OF INDIVIDUAL PART .)
Resistance (ATF temperature: 20 °C {68 °F}) 513-627 ohms

Fig 2: Identifying Terminal Component No.2 Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Connect the terminal component No. 2 connector.
