Technical Data (Suspension)
>>
Suspension Technical Data
Suspension Technical Data

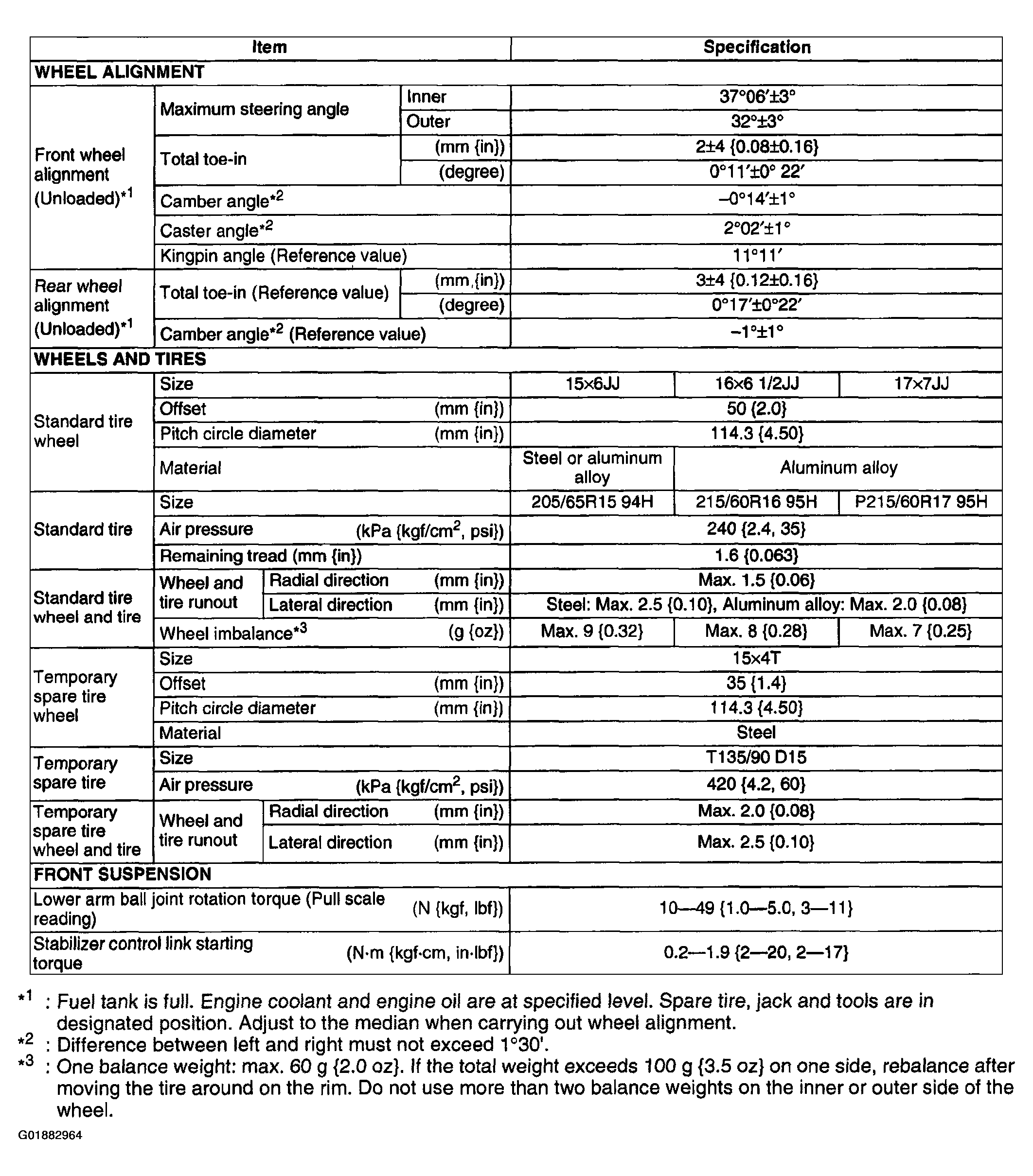

Fig 1: Suspension Technical Specification Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
