Seal Ring Assembly Note

  1. Assemble the seal rings to the pinion shaft component.
  2. Pull the SST  over the pinion shaft component from both directions. This will correctly shape the seal ring.
  3. Install the oil seal from the pinion shaft gear side.

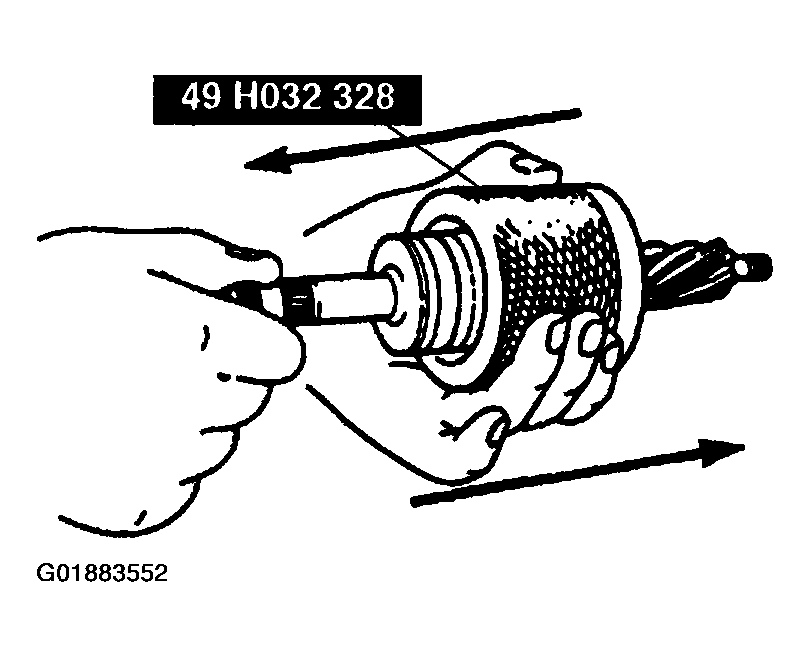

    Fig 1: Installing Oil Seal From Pinion Shaft Gear Side
    G01883552Courtesy of MAZDA MOTORS CORP.
