Wiper And Washer Switch Connector End View

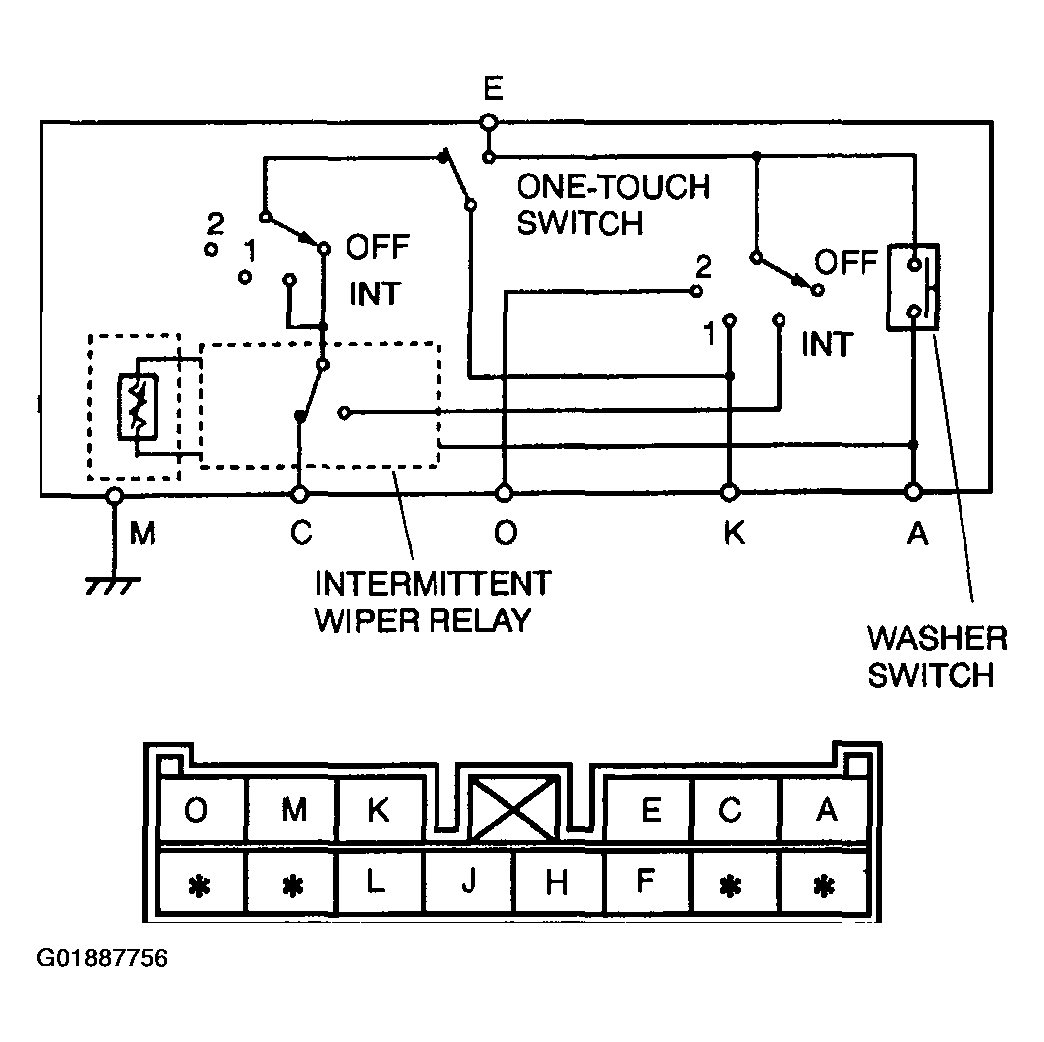

Fig 1: Wiper And Washer Switch Connector End View

G01887756

Courtesy of MAZDA MOTORS CORP.
