Instrument Cluster Connector End View

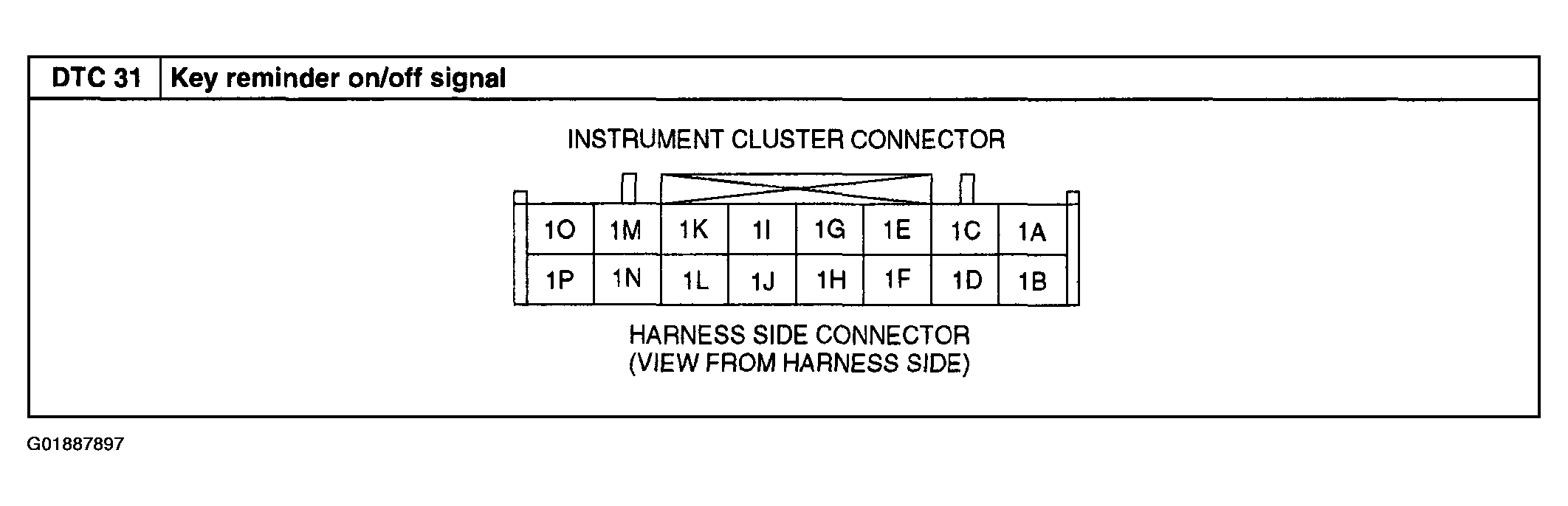

Fig 1: Instrument Cluster Connector End View
G01887897Courtesy of MAZDA MOTORS CORP.

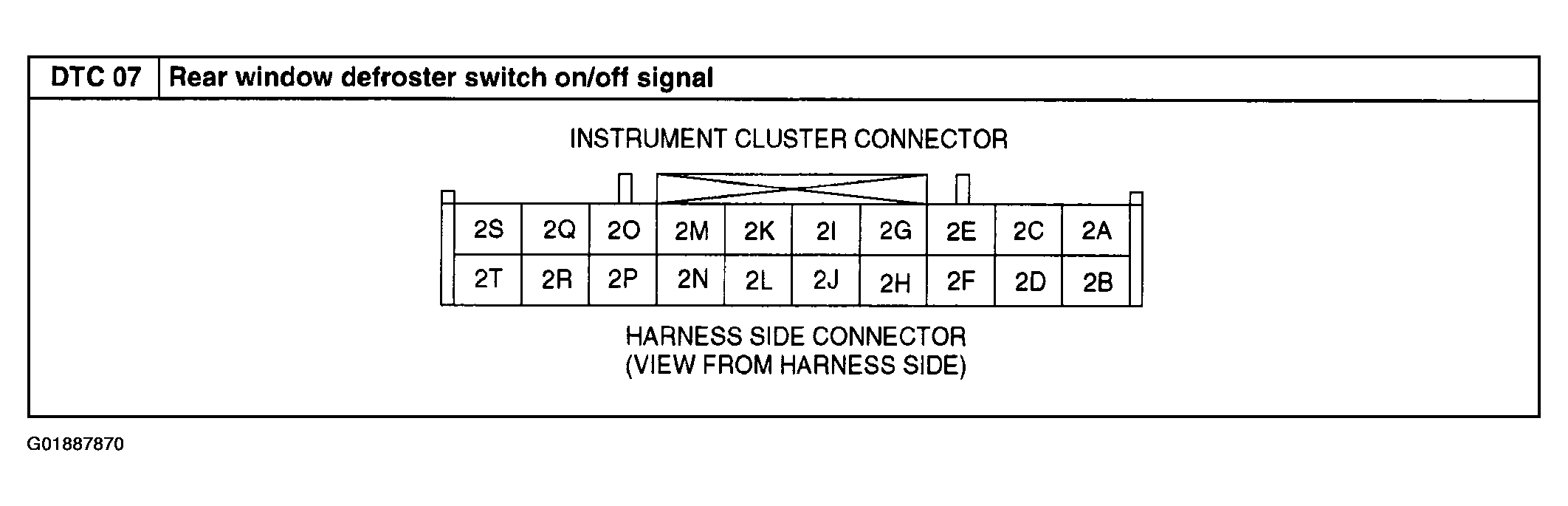

Fig 1: Instrument Cluster Connector End View
G01887870Courtesy of MAZDA MOTORS CORP.

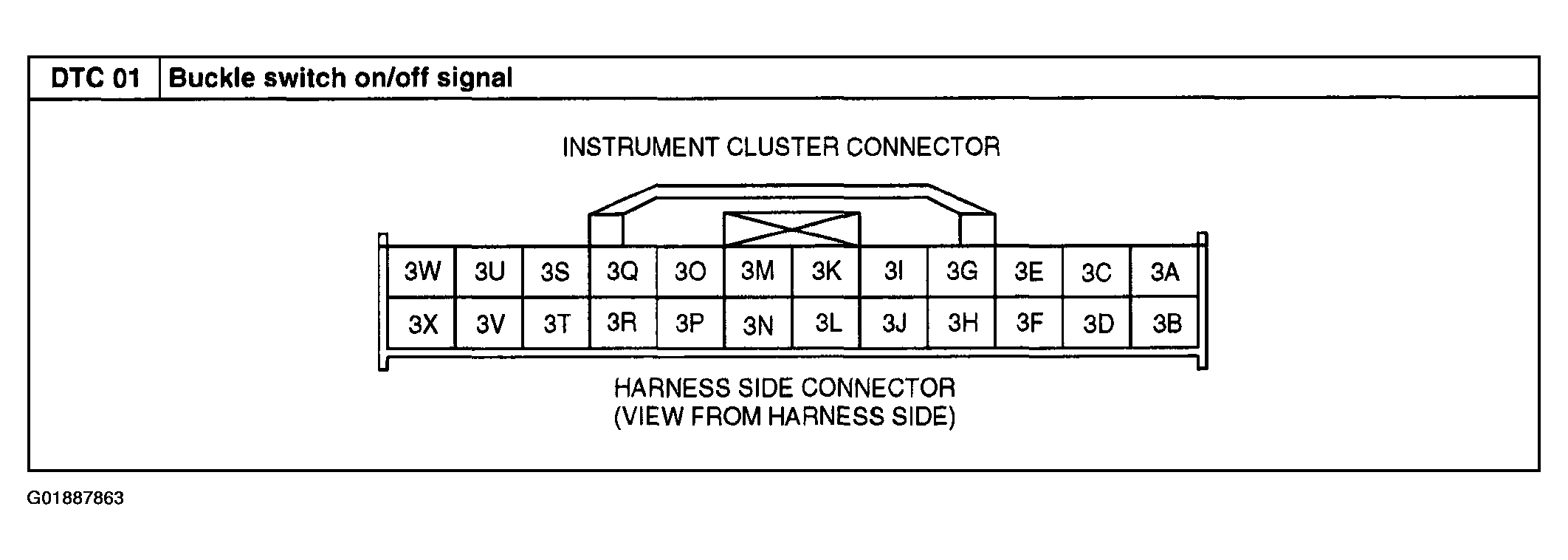

Fig 1: Instrument Cluster Connector End View
G01887863Courtesy of MAZDA MOTORS CORP.
