Rear Main Fan Switch Disassembly/Assembly

  1. Remove the rear main fan switch. (See REAR MAIN FAN SWITCH REMOVAL/INSTALLATION  (+)
  2. Disassemble in the order indicated in the figures.

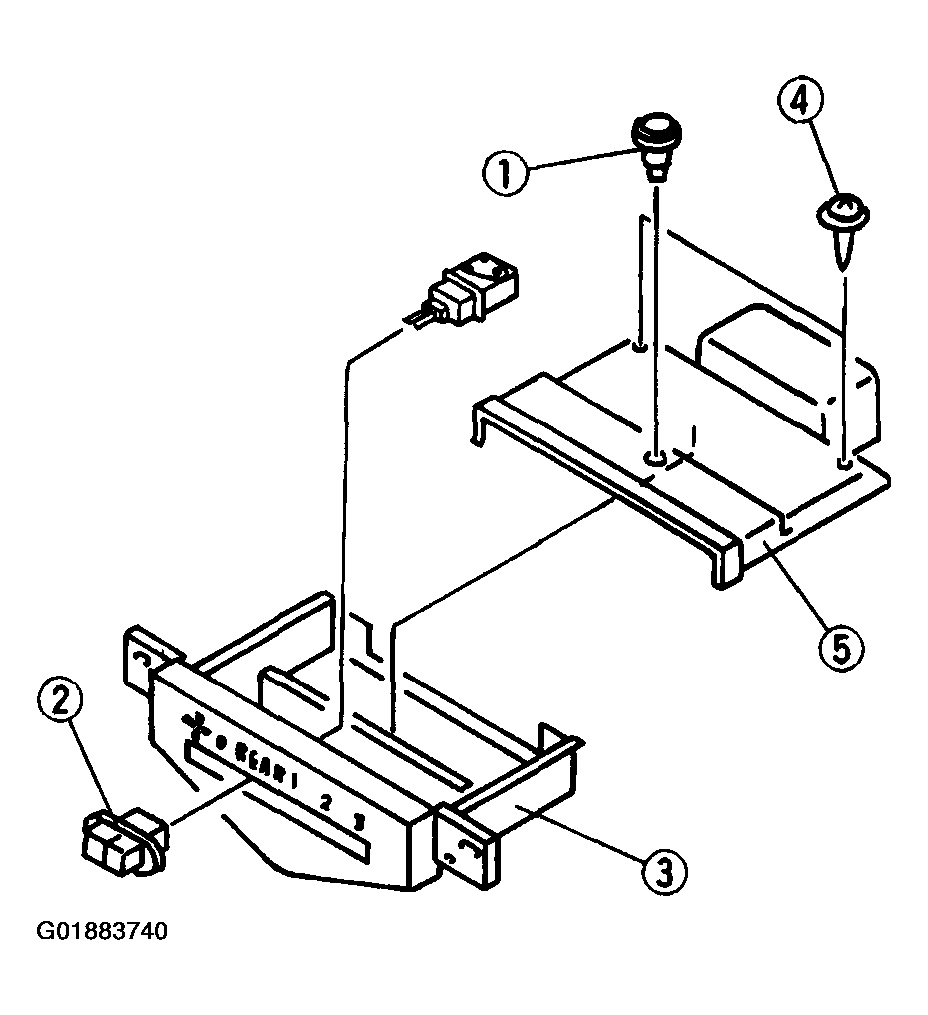

    Fig 1: Disassembling Rear Main Fan Switch
    G01883740Courtesy of MAZDA MOTORS CORP.
    Fig 2: Rear Main Fan Switch Disassembly Sequence
    G01883739Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
