Basic System Location Index

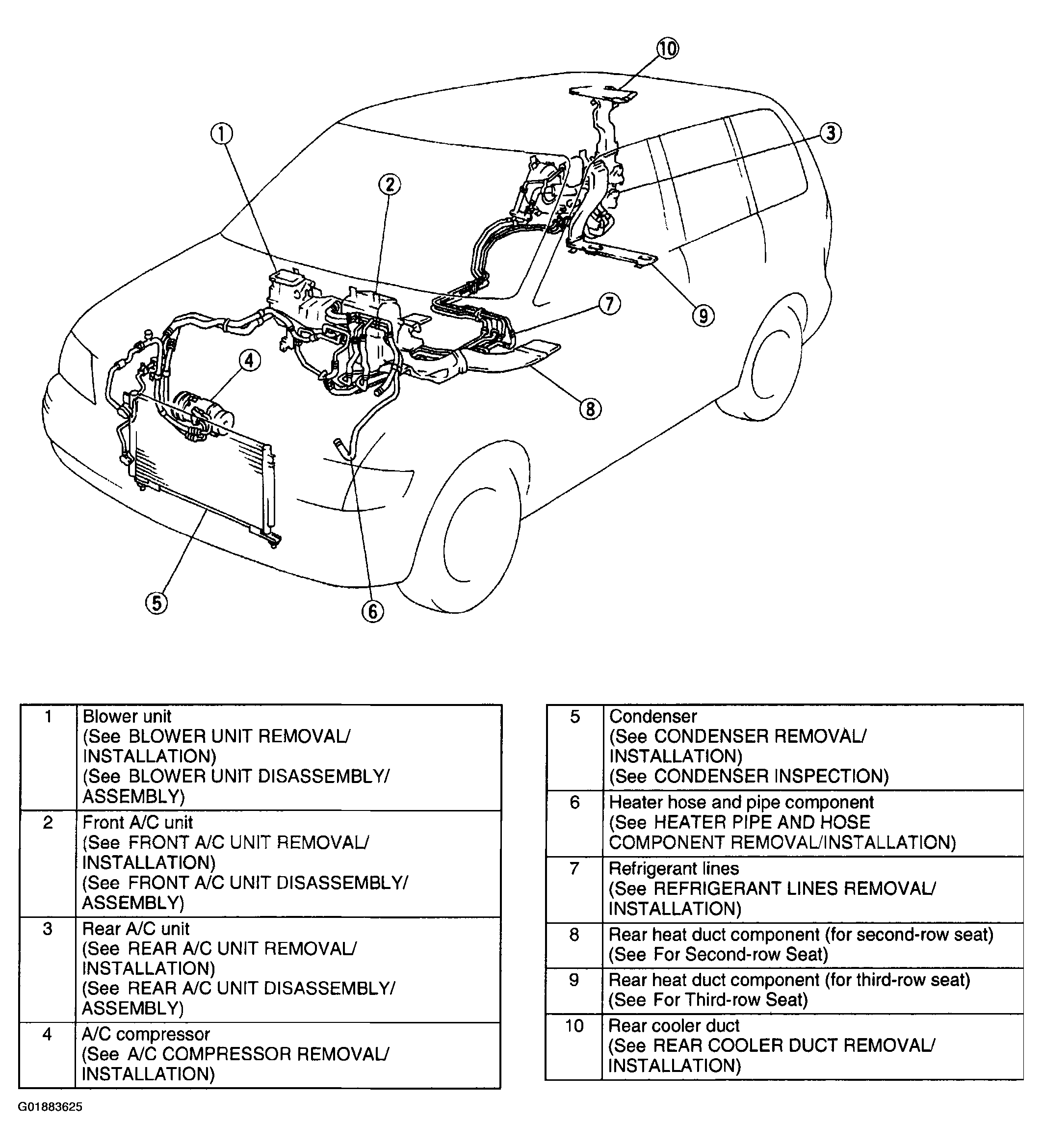

Fig 1: Locating Basic System Component Index

G01883625

Courtesy of MAZDA MOTORS CORP.
