Not Reusing Rear Window Glass

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • For the areas of the sealant that are difficult to cut, use the SST (piano wire) and follow the procedure under "Reusing Rear Window Glass".
  1. Cut out the sealant all around the glass using a sealant remover.
  2. Remove the sealant by pulling it off.
  3. Remove the rear window glass.

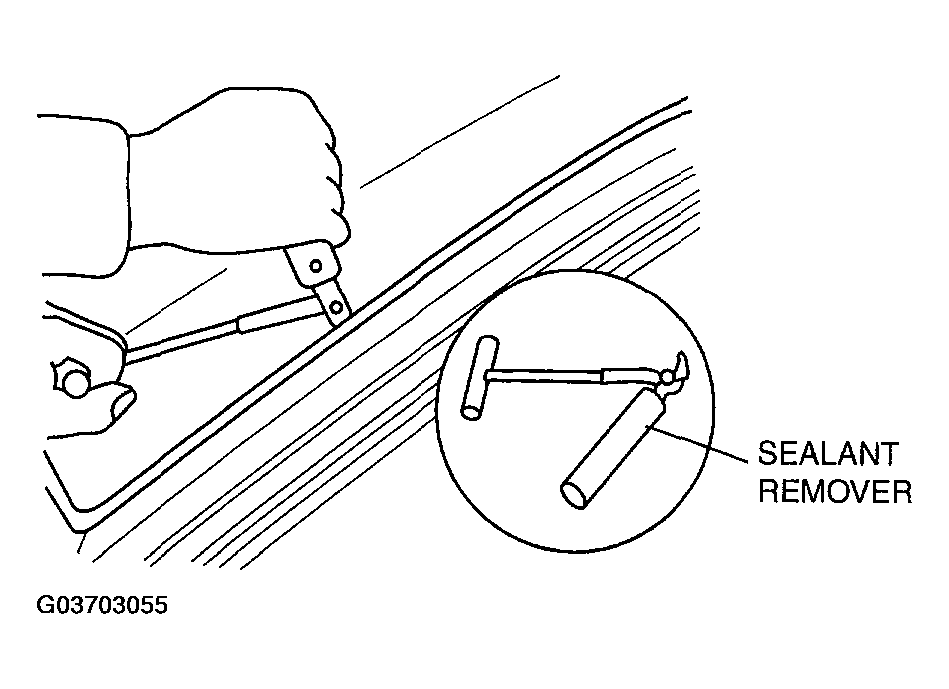

    Fig 1: Removing The Sealant Using Sealant Remover
    G03703055Courtesy of MAZDA MOTORS CORP.
