Resistor Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the resistance between the resistor terminals is as indicated in the table.
- If there is any malfunction, replace the resistor.

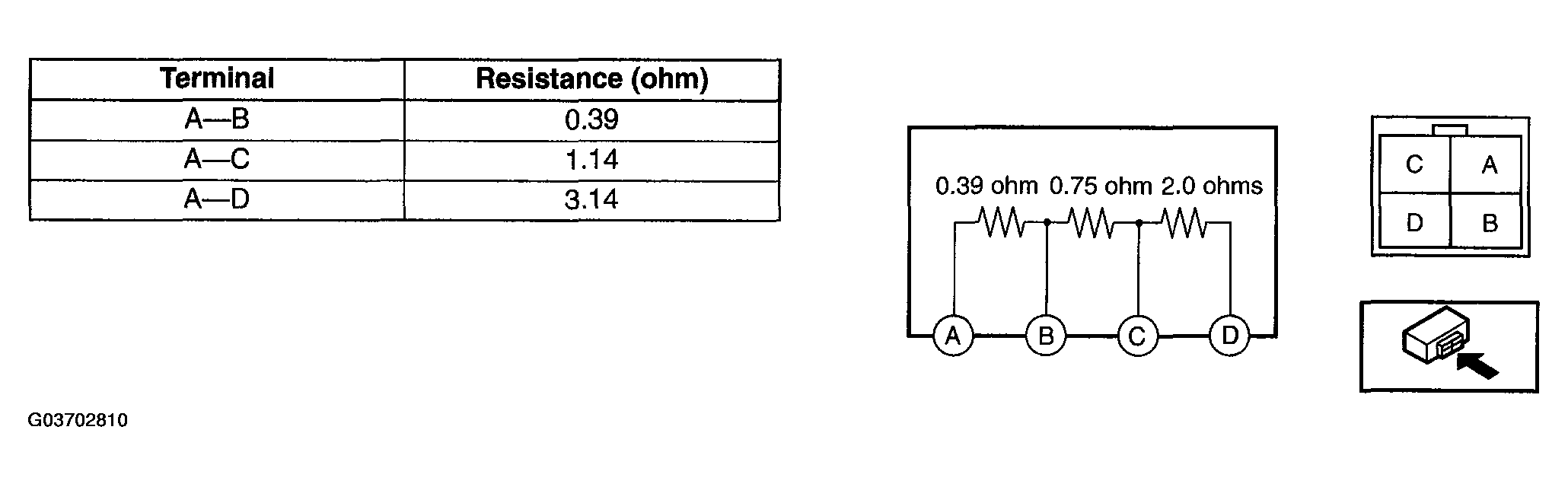

Fig 1: Identifying Resistor Terminals
Courtesy of MAZDA MOTORS CORP.
