Ignition Coil Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
  2. Remove the battery cover.
  3. Remove the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
  4. Remove the air cleaner duct. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.

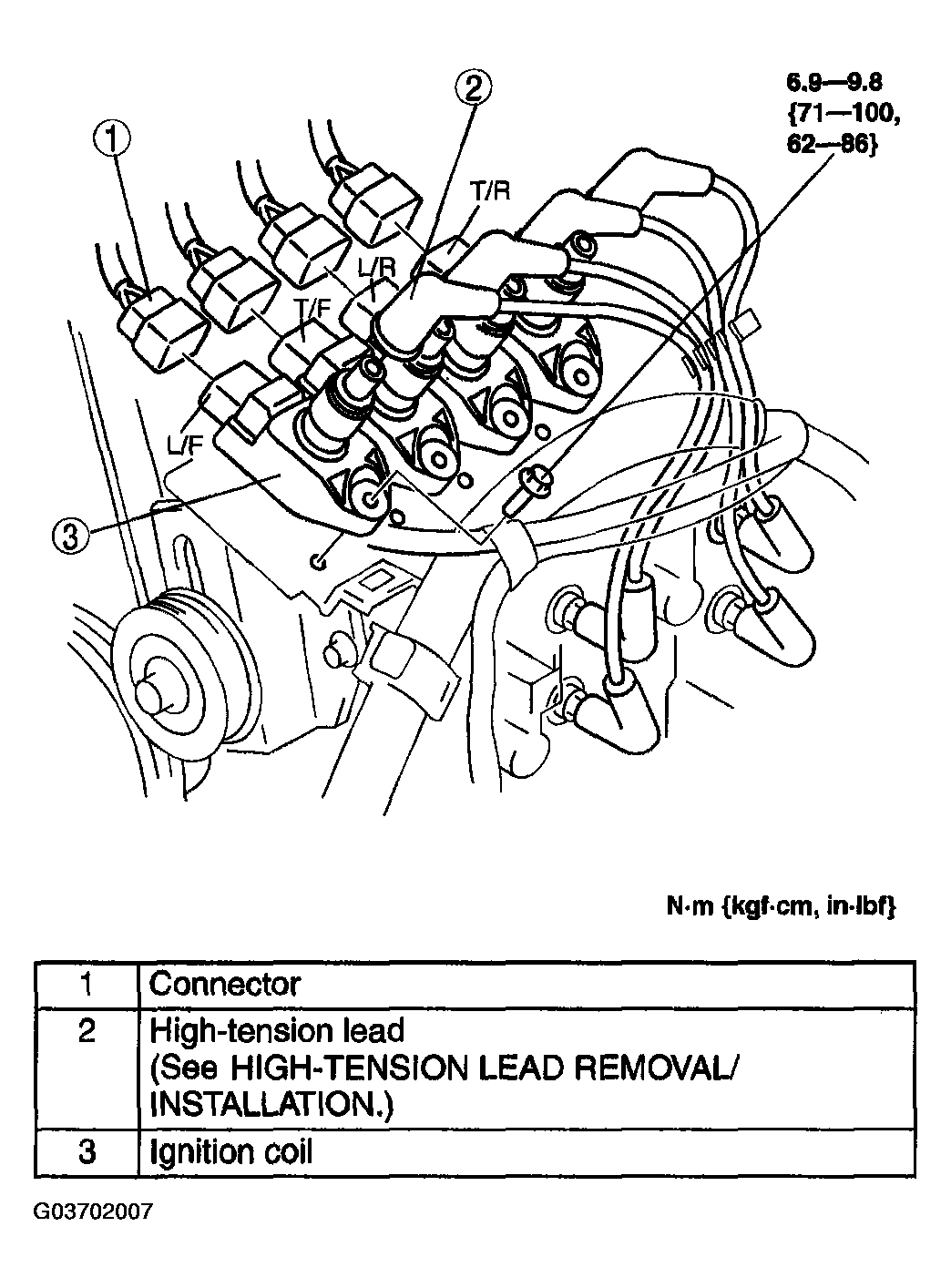

    Fig 1: Removing Ignition Coils With Torque Specification
    G03702007Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
