Transverse Member Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transverse member.
  2. Install the transverse member.

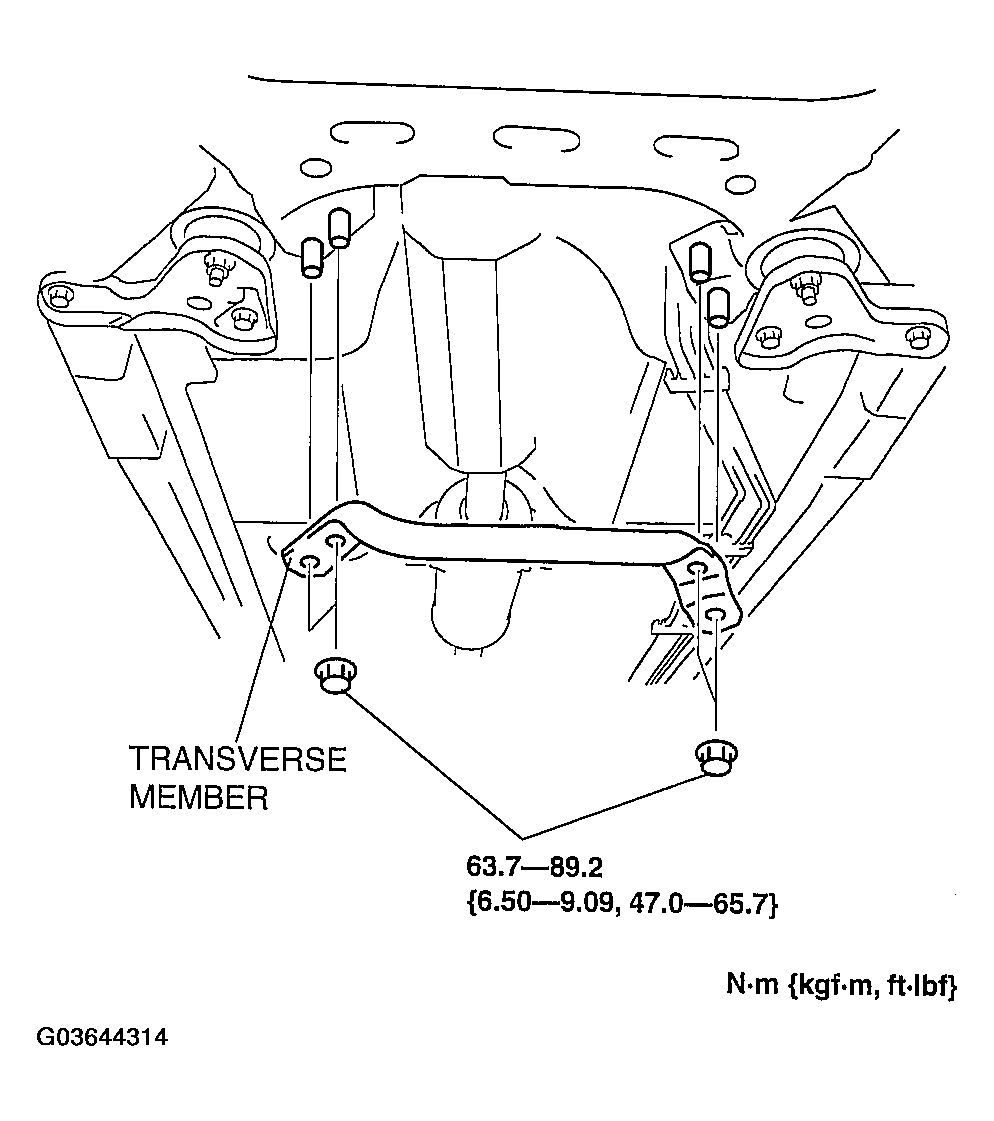

    Fig 1: Removing/Installing Transverse Member (Torque Specs)
    G03644314Courtesy of MAZDA MOTORS CORP.
