Clutch Pipe Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

A common reservoir is used for the clutch and brake system fluid.

If clutch pipes have been disconnected any time during the procedure, add clutch fluid (brake fluid), bleed the air, and inspect for leakage after the procedure has been completed.
Remove the clutch pipe using the SST (49 0259 770B). Install the clutch pipe using torque wrench SST combination.

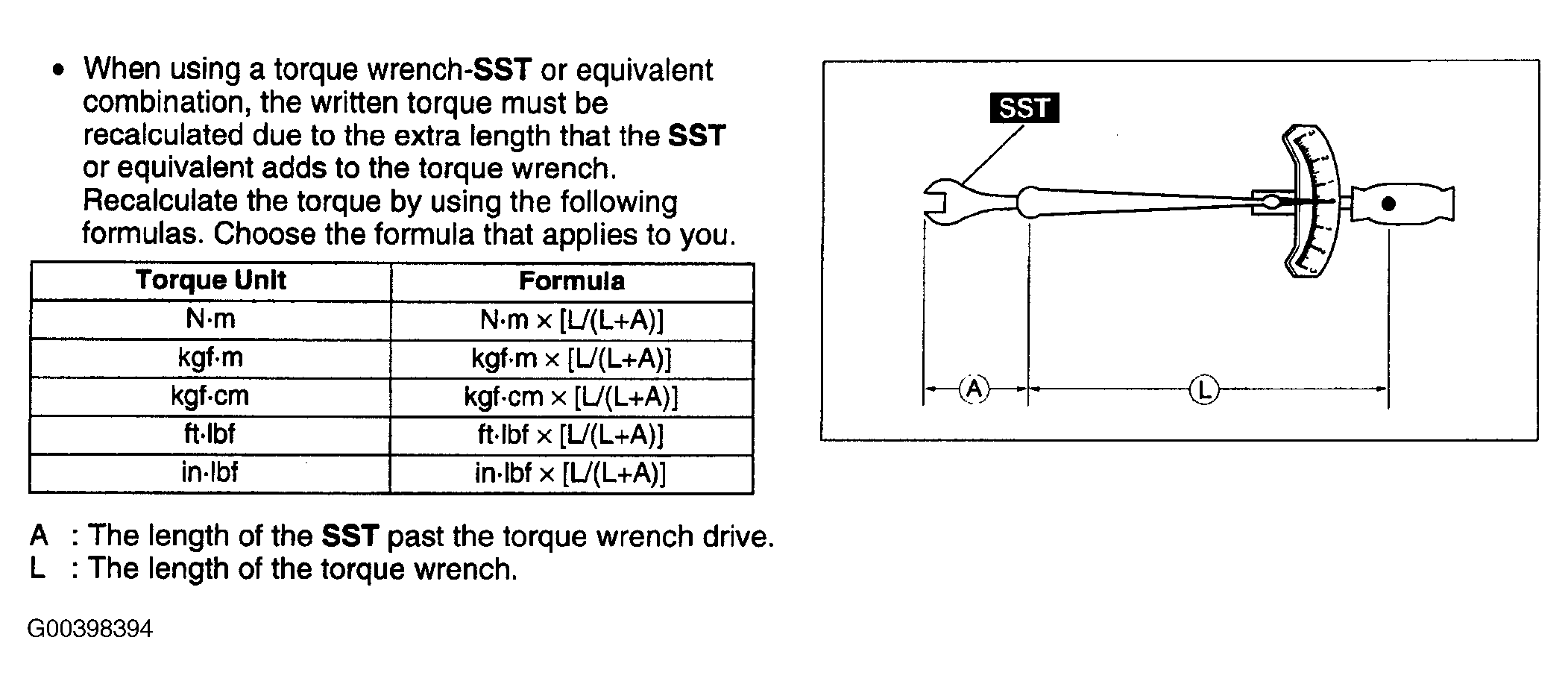

Fig 1: Calculating Torque Formulas
Courtesy of MAZDA MOTORS CORP.
