Starter interlock switch Installation Note
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

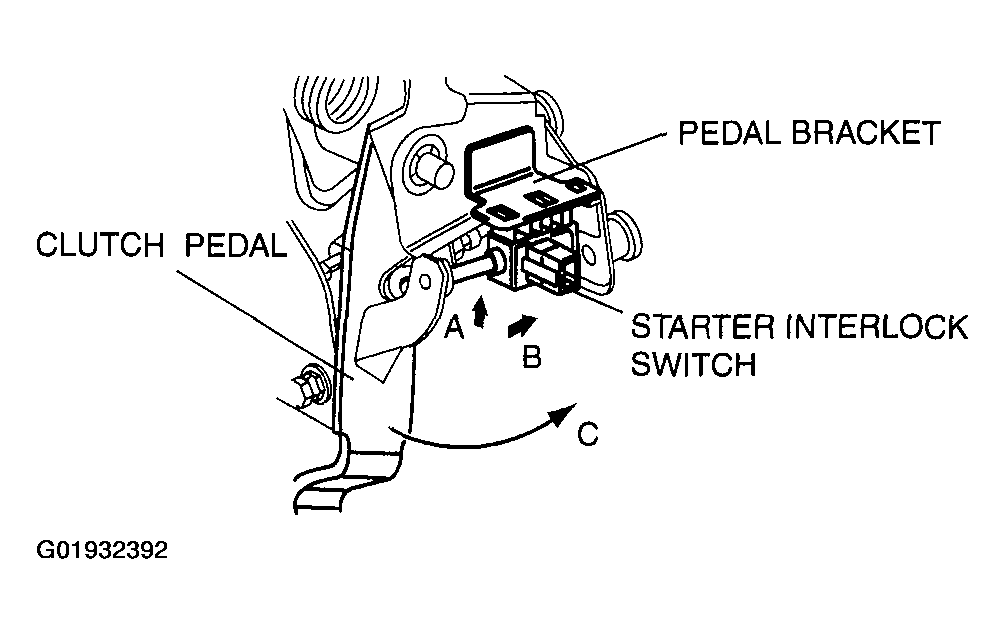

- Insert starter interlock switch into hole in pedal bracket in arrow direction A.
- Slide starter interlock switch pressing it in arrow direction B until locked.
- Press clutch pedal fully in arrow direction C and adjust terminal of starter interlock switch.
