Clutch Disc Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Using vernier calipers, measure the thickness of the lining at a rivet head on both sides.
- Replace the clutch disc if its thickness is less than the minimum.
  1. Thickness 0.3 mm {0.012 in} min.

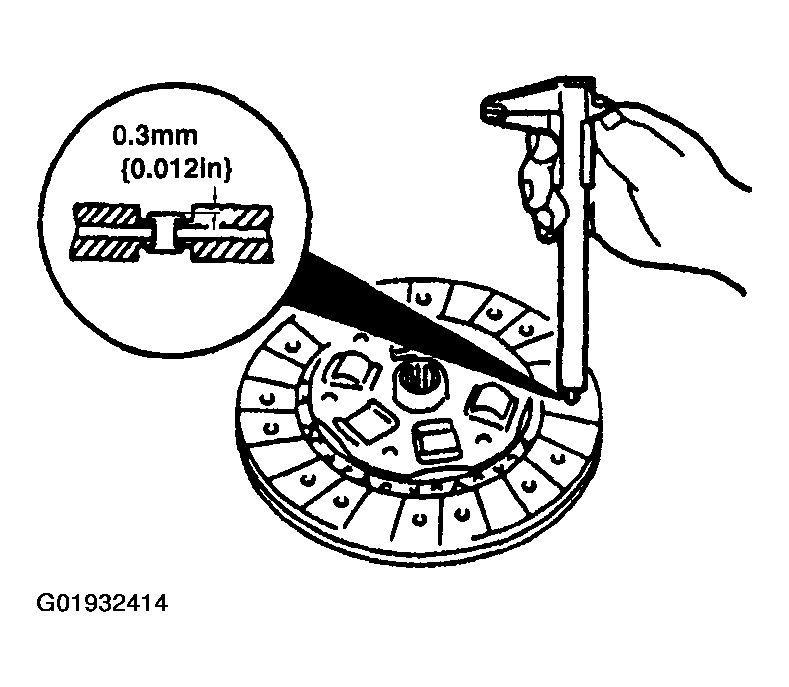

  Fig 1: Measuring Thickness Of Lining At A Rivet Head
  Courtesy of MAZDA MOTORS CORP.
Measure the clutch disc runout using a dial indicator.
- If the runout is excessive, replace the clutch disc.
  1. Runout 0.7 mm {0.028 in} max.
  Fig 2: Measuring Clutch Disc Runout Using Dial Indicator
  Courtesy of MAZDA MOTORS CORP.
