Rear Speaker Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws.
  4. Disconnect the connector and remove the rear speaker.

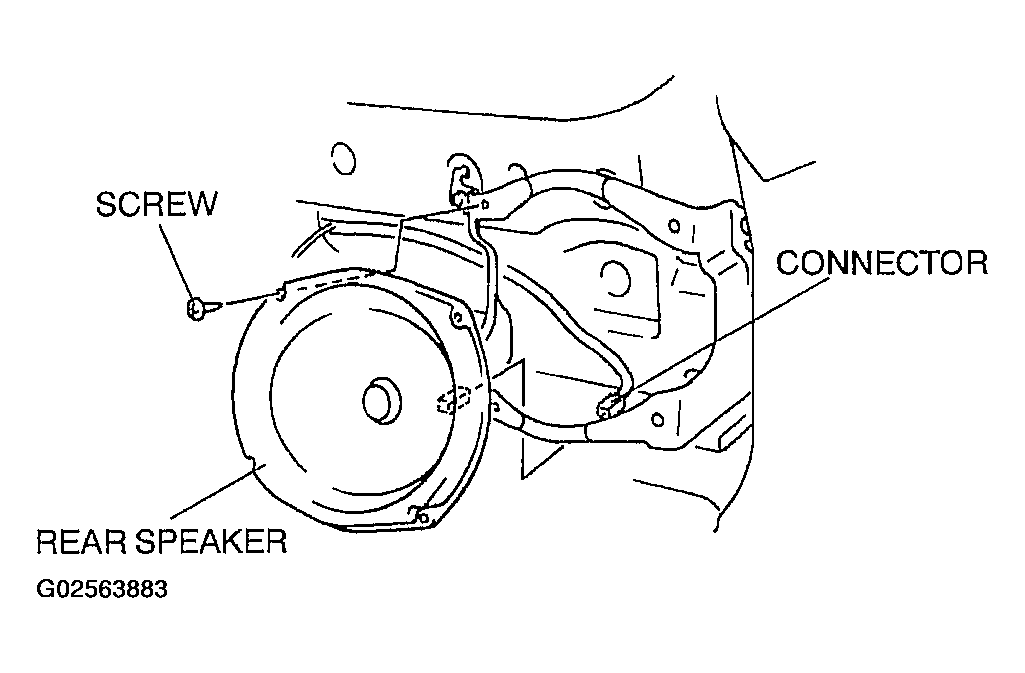

    Fig 1: Removing/Installing Rear Speakers
    G02563883Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
