Ignition Coil Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
    1. LH: Remove the plug hole plate. (See TIMING CHAIN REMOVAL/INSTALLATION).
    2. RH: Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION).
  3. Remove in the order indicated in the illustration.
    Fig 1: Ignition Coil Removing/Installing Sequence
    G00991582Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
    • Apply a light film of silicon brake caliper grease and dielectric compound to the interior of the spark plug boot prior to installation.

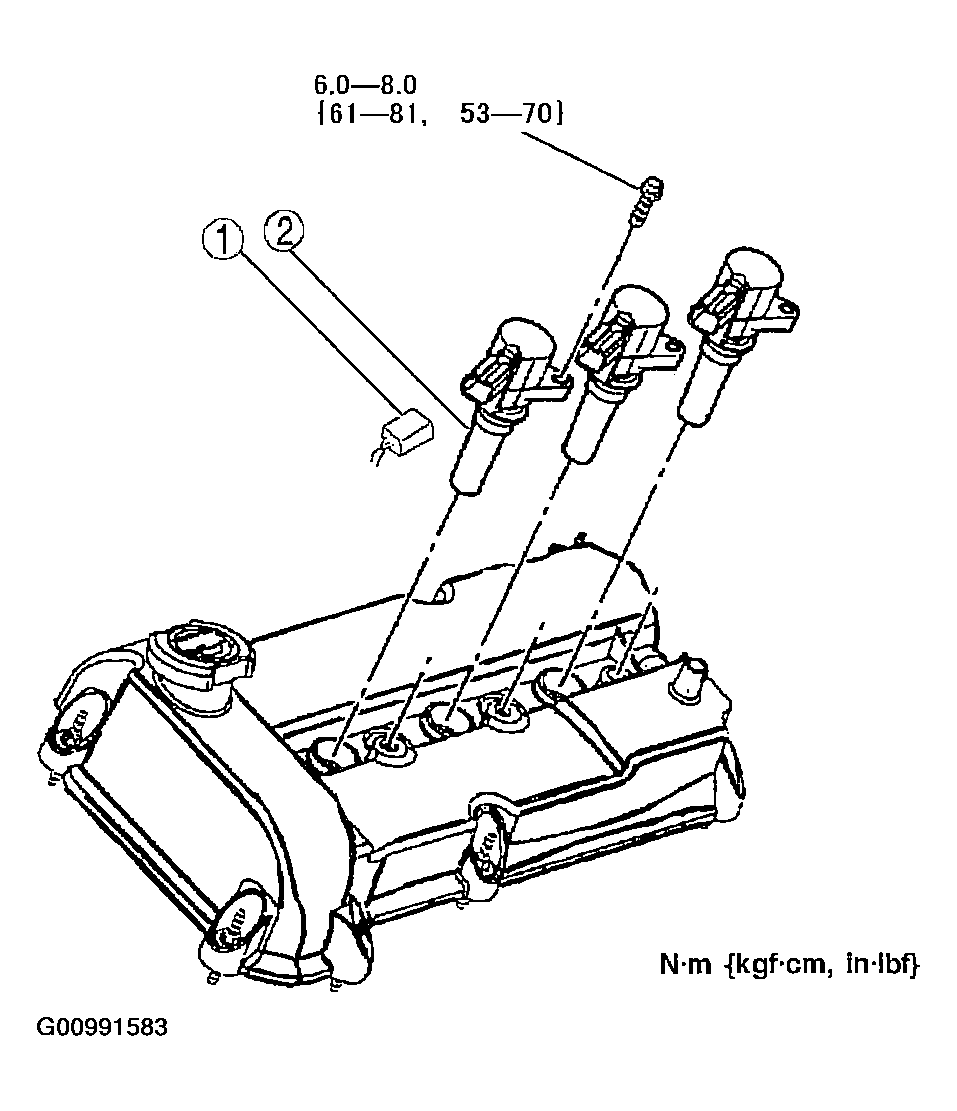

    Fig 2: Removing/Installing Ignition Coils
    G00991583Courtesy of MAZDA MOTORS CORP.
