Oil Pump Removal Note

  1. Loosen the oil pump bolts in the order shown.

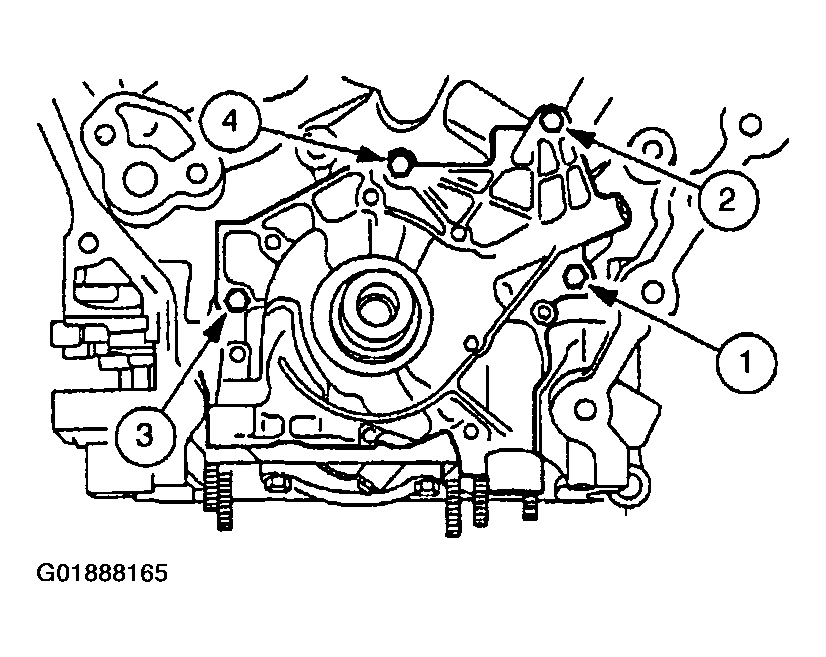

    Fig 1: Oil Pump Bolts Loosening Sequence
    G01888165Courtesy of MAZDA MOTORS CORP.
