Oil Pan Installation Note

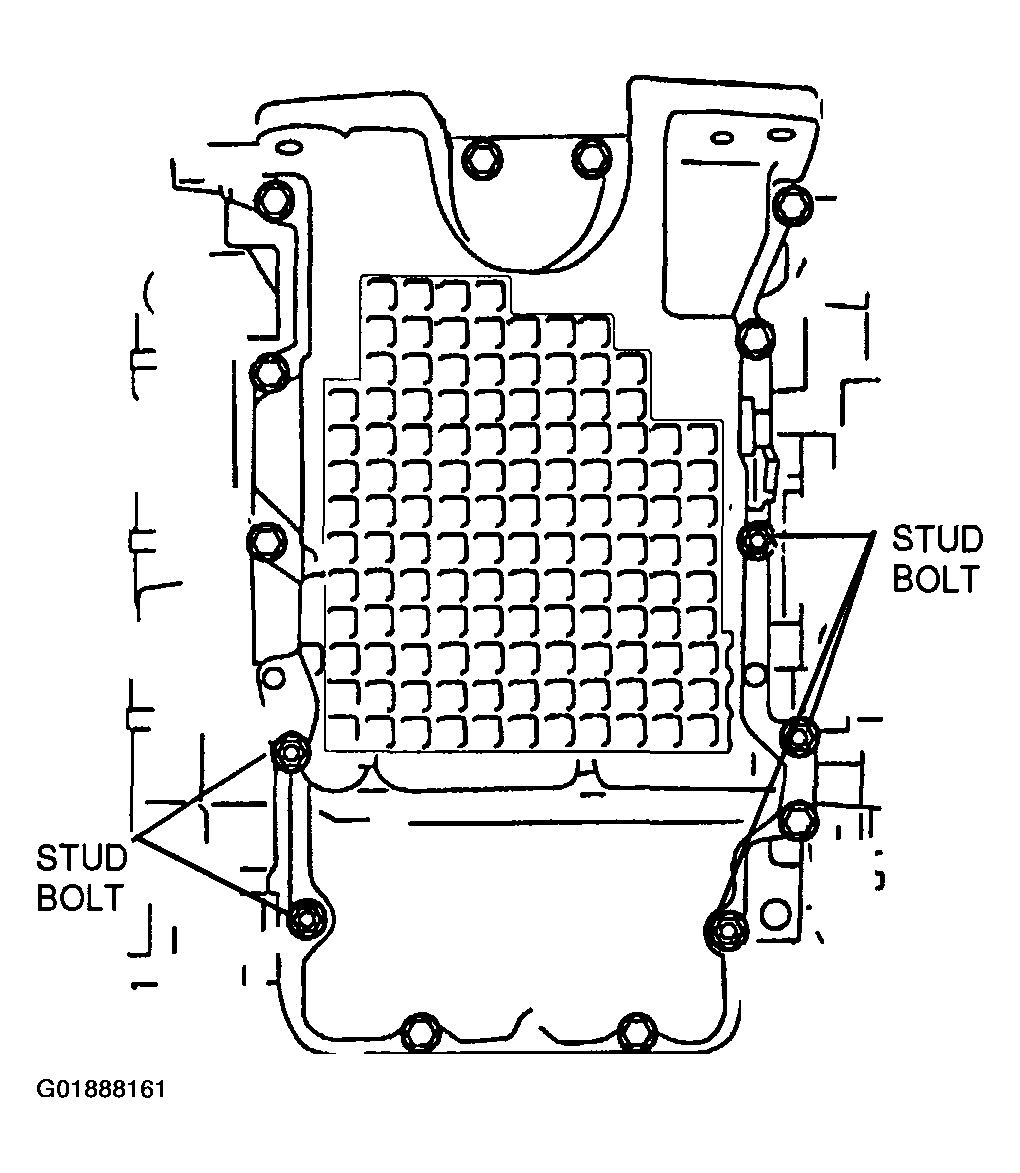

  1. Install the oil pan bolts and studs as shown.
    Fig 1: Installing Oil Pan Bolts And Studs
    G01888161Courtesy of MAZDA MOTORS CORP.
  2. Tighten the transaxle housing bolts to oil pan.
    Fig 2: Tightening Transaxle Housing Bolts To Oil Pan
    G01888162Courtesy of MAZDA MOTORS CORP.

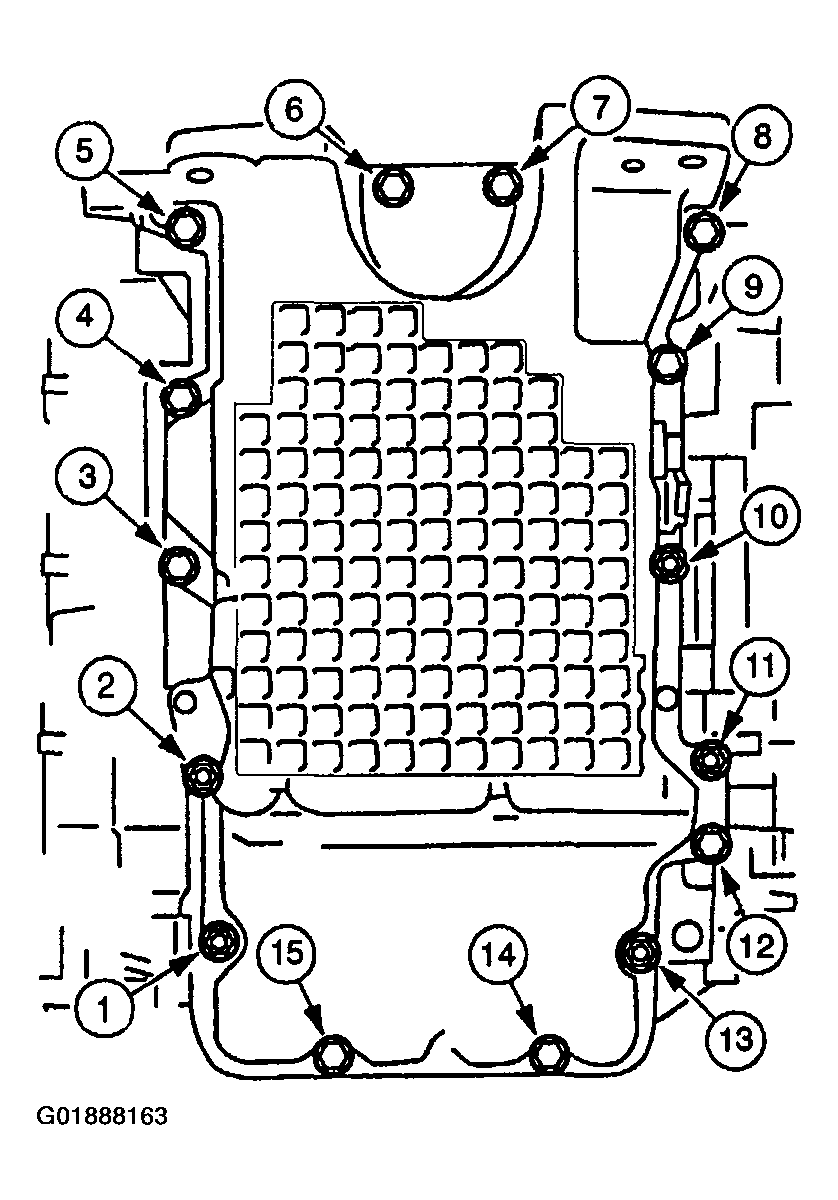

  3. Tighten the oil pan bolts and studs in several passes in the order shown.
    Fig 3: Oil Pan Bolts And Studs Tightening Sequence
    G01888163Courtesy of MAZDA MOTORS CORP.
