Engine Coolant Level Inspection

  1. Verify that the coolant level in the coolant reservoir is between the F and L marks.
    • If the engine coolant level is below L, remove the cooling system cap and add coolant. (See COOLING SYSTEM SERVICE WARNINGS  .)

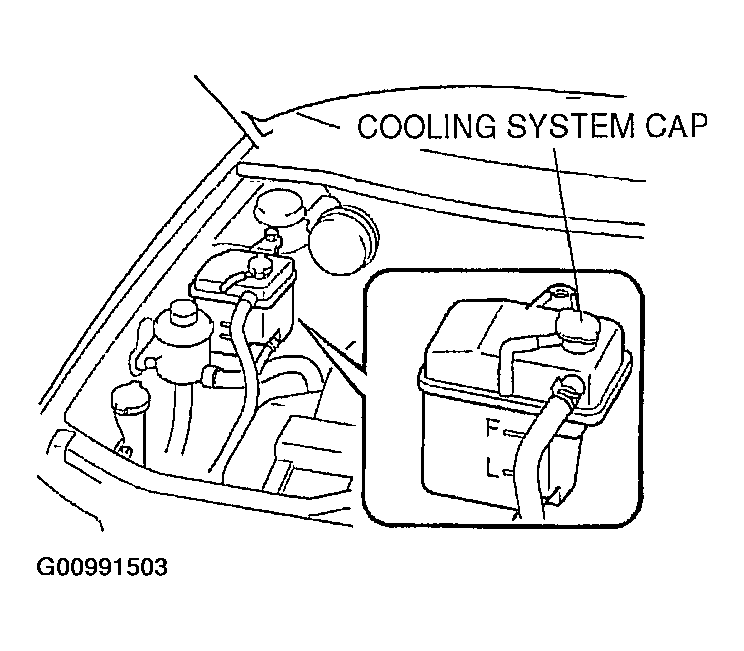

      Fig 1: Locating Cooling System Cap
      G00991503Courtesy of MAZDA MOTORS CORP.
