Instrument Cluster System Wiring Diagram

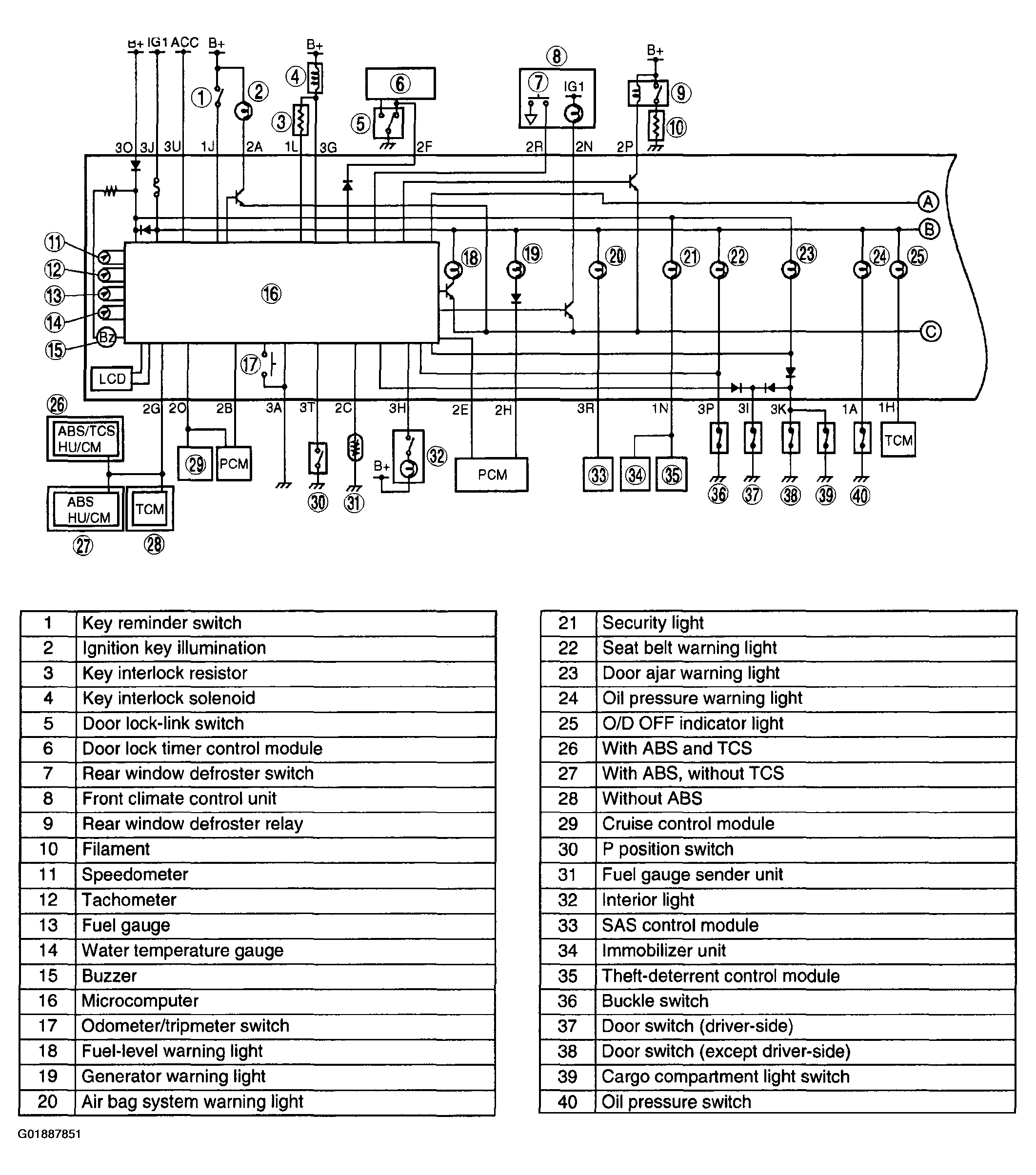

Fig 1: Instrument Cluster System Wiring Diagram (Items 1-40)
G01887851Courtesy of MAZDA MOTORS CORP.

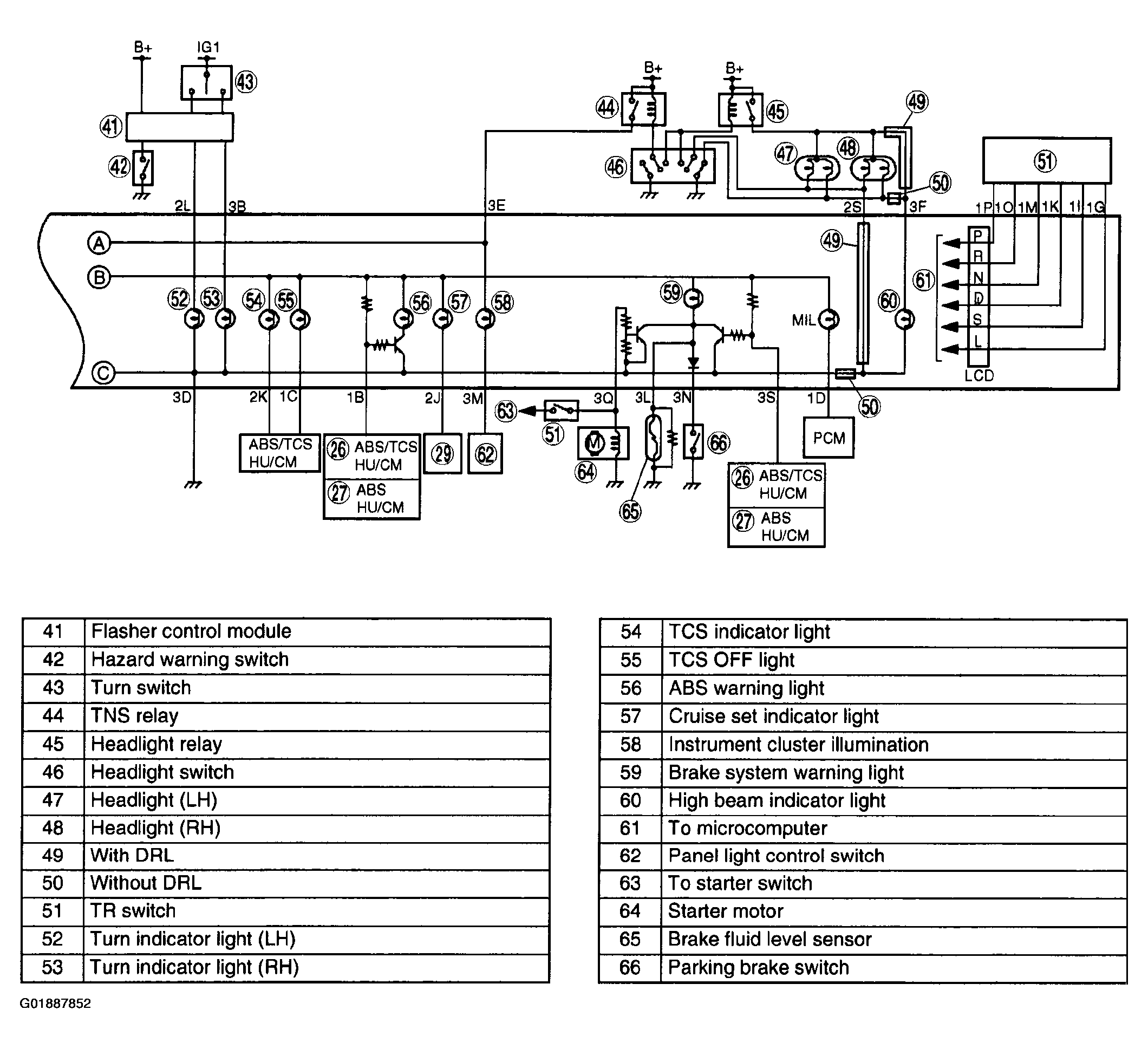

Fig 2: Instrument Cluster System Wiring Diagram (Items 41-66)
G01887852Courtesy of MAZDA MOTORS CORP.
