Engine speed

ABS HU/CM terminal: S (+) - AA (-)
Oscilloscope setting: 2 V/DIV (Y), 25 ms/DIV (X)
Vehicle condition: Idle after warm-up (Engine speed at approximately 650 rpm)

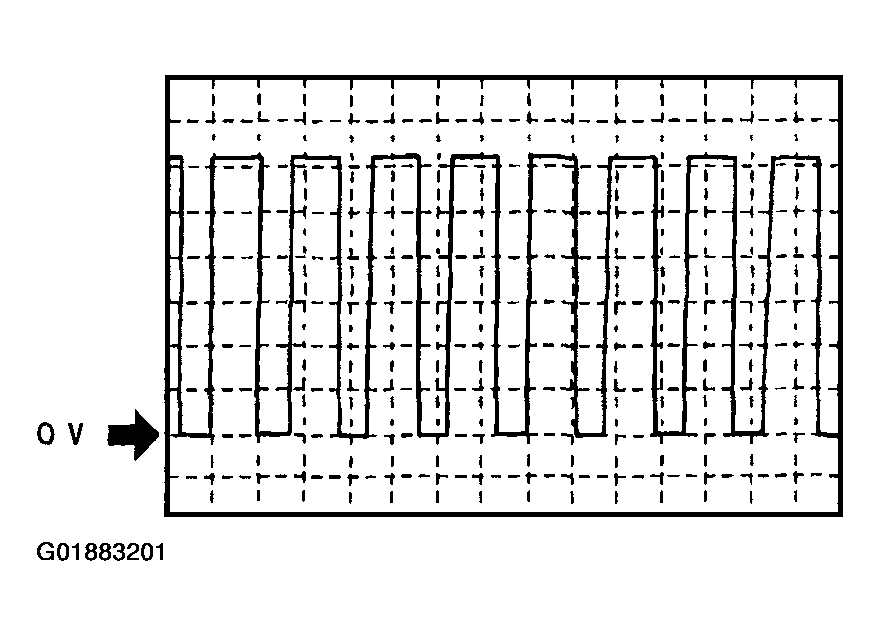

Fig 1: Inspecting With Using Oscilloscope (Engine Speed)
Courtesy of MAZDA MOTORS CORP.
