Slider Disassembly Note

  1. Remove the screw.
  2. Slide the slider rearward, and remove it from the sunroof frame.

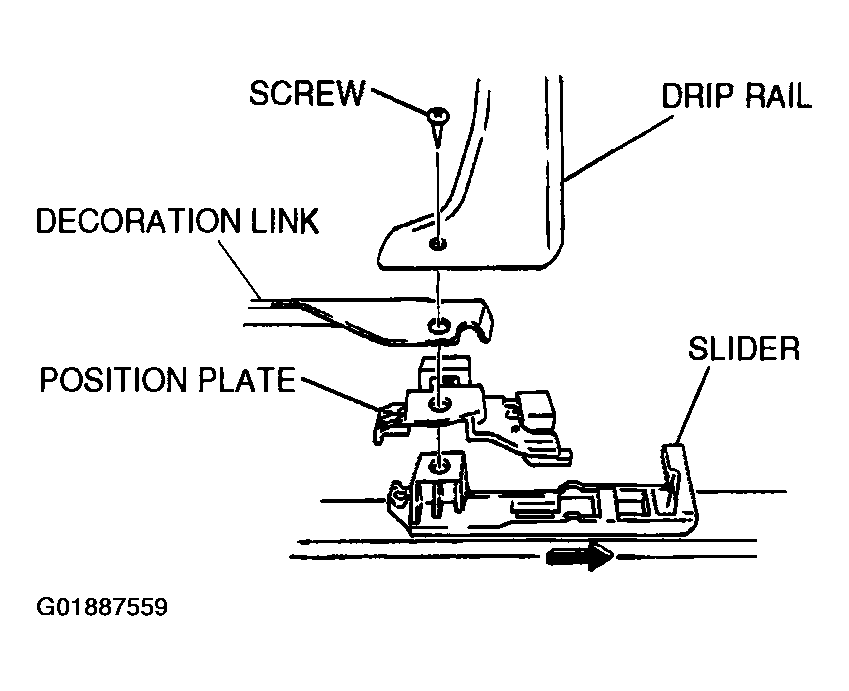

    Fig 1: Removing Screw
    G01887559Courtesy of MAZDA MOTORS CORP.
