Sunroof Switch Inspection

Remove the sunroof switch. (See MAP LIGHT REMOVAL/INSTALLATION .)
Inspect for continuity between the sunroof switch terminals using an ohmmeter.
- If not as specified, replace the sunroof switch.

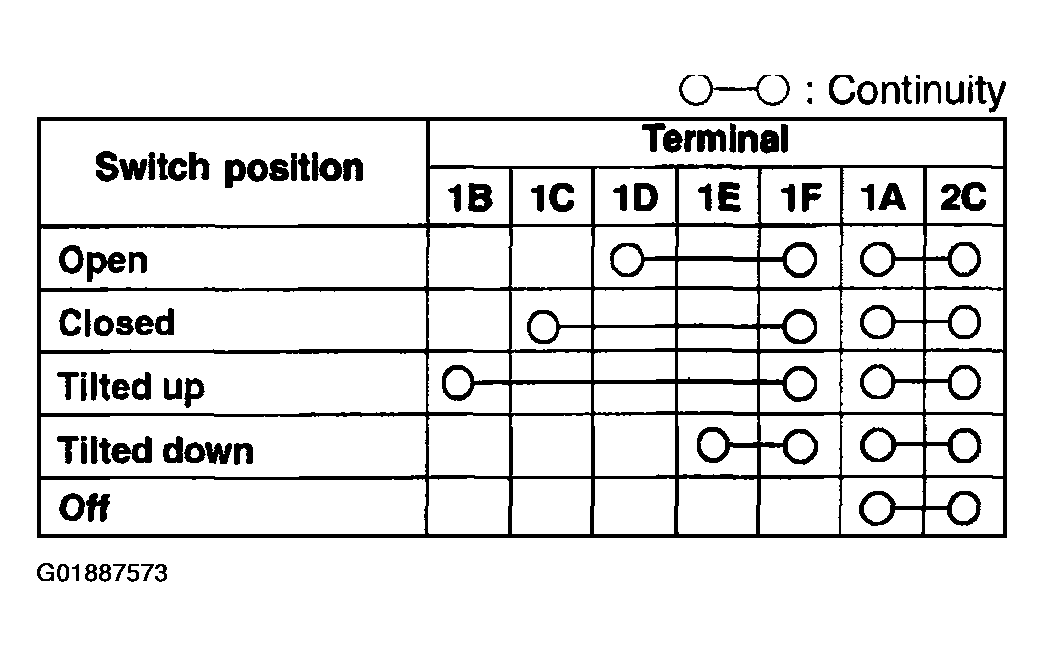

  Fig 1: Terminal Continuity Table
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Inspecting Continuity Between Sunroof Switch Terminals
  Courtesy of MAZDA MOTORS CORP.
