Deflector Removal/Installation

  1. Remove the screws.
  2. Slide the deflector to disengage it from the tabs.
  3. Remove the deflector.
  4. Install in the reverse order of removal.

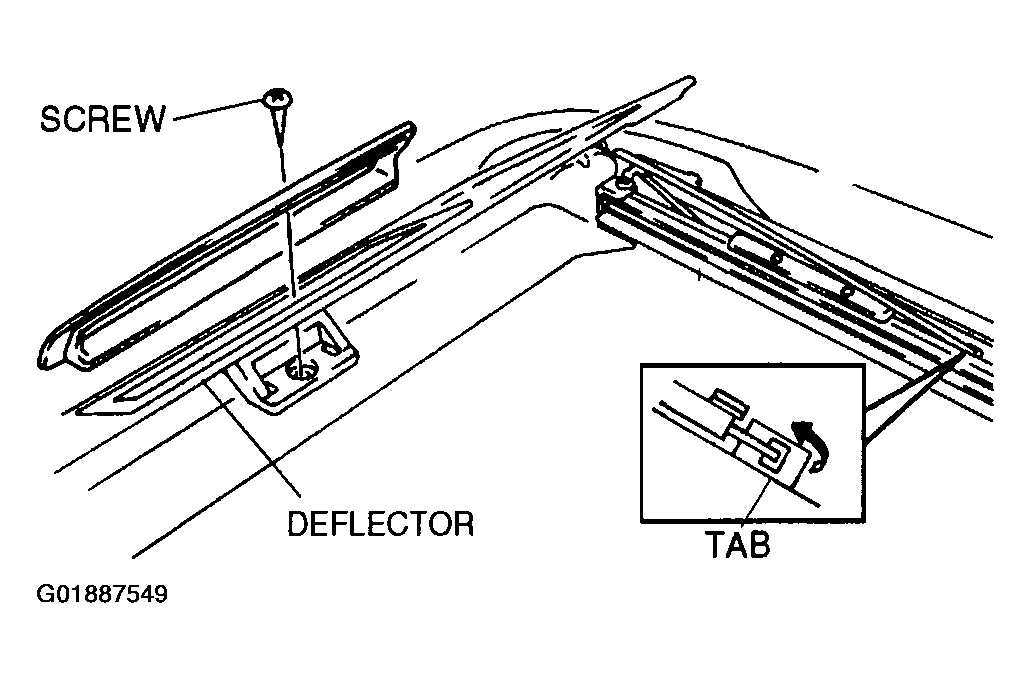

    Fig 1: Removing Screws
    G01887549Courtesy of MAZDA MOTORS CORP.
