Front Scuff Plate Removal/Installation

  1. Pull the front scuff plate upward, then disengage clips A, pin B and hooks C from the body, and remove the front scuff plate.
  2. Install in the reverse order of removal.

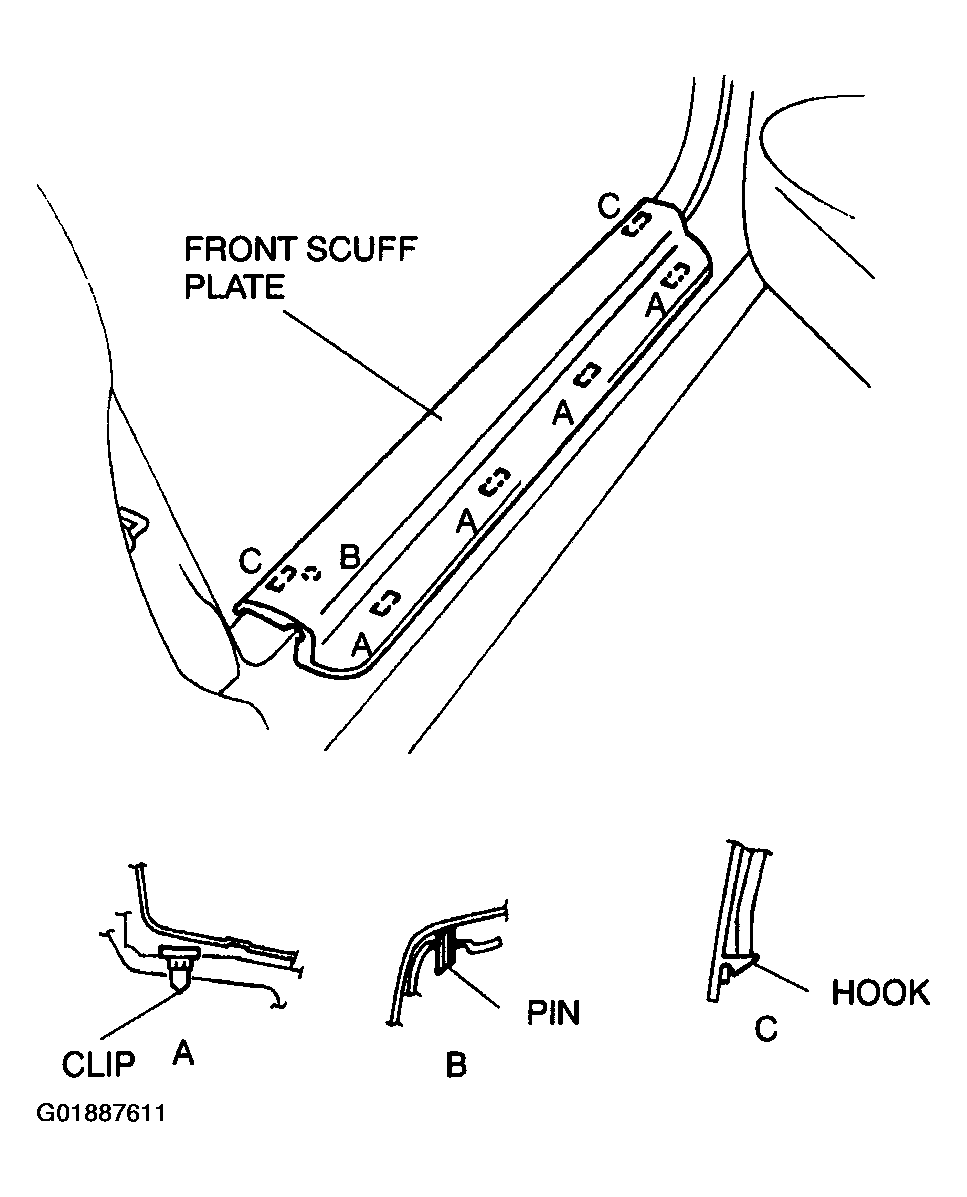

    Fig 1: Disengaging Clips A, Pin B And Hooks C From Body, And Removing Front Scuff Plate
    G01887611Courtesy of MAZDA MOTORS CORP.
