B-Pillar Upper Trim Removal/Installation

  1. Remove the upper anchor of the front seat belt. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  2. Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION  .)
  3. Turn the seaming welt over.
  4. Disengage clip A using a fastener remover.
  5. Pull the B-pillar upper trim upward, then disengage hooks B from the body, and remove the B-pillar upper trim.
  6. Install in the reverse order of removal.

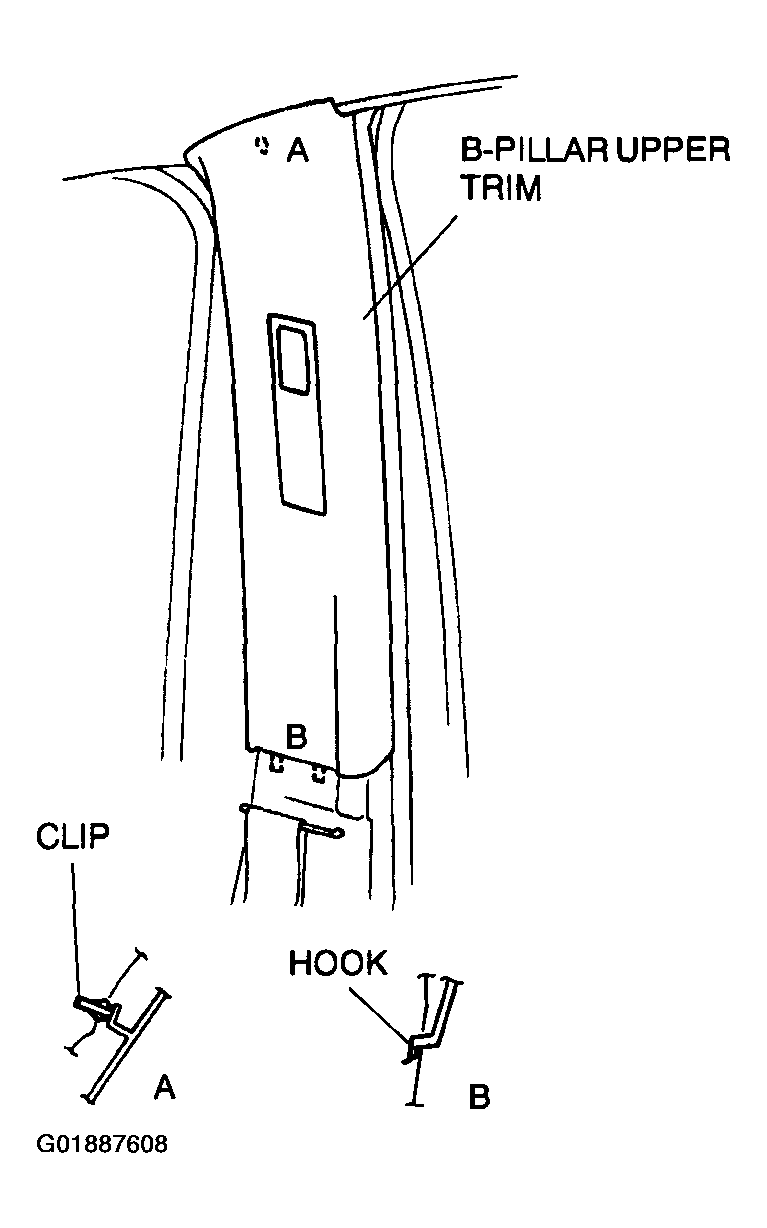

    Fig 1: Disengaging Hooks B From Body And Removing B-Pillar Upper Trim
    G01887608Courtesy of MAZDA MOTORS CORP.
