Power Door Lock System Wiring Diagram

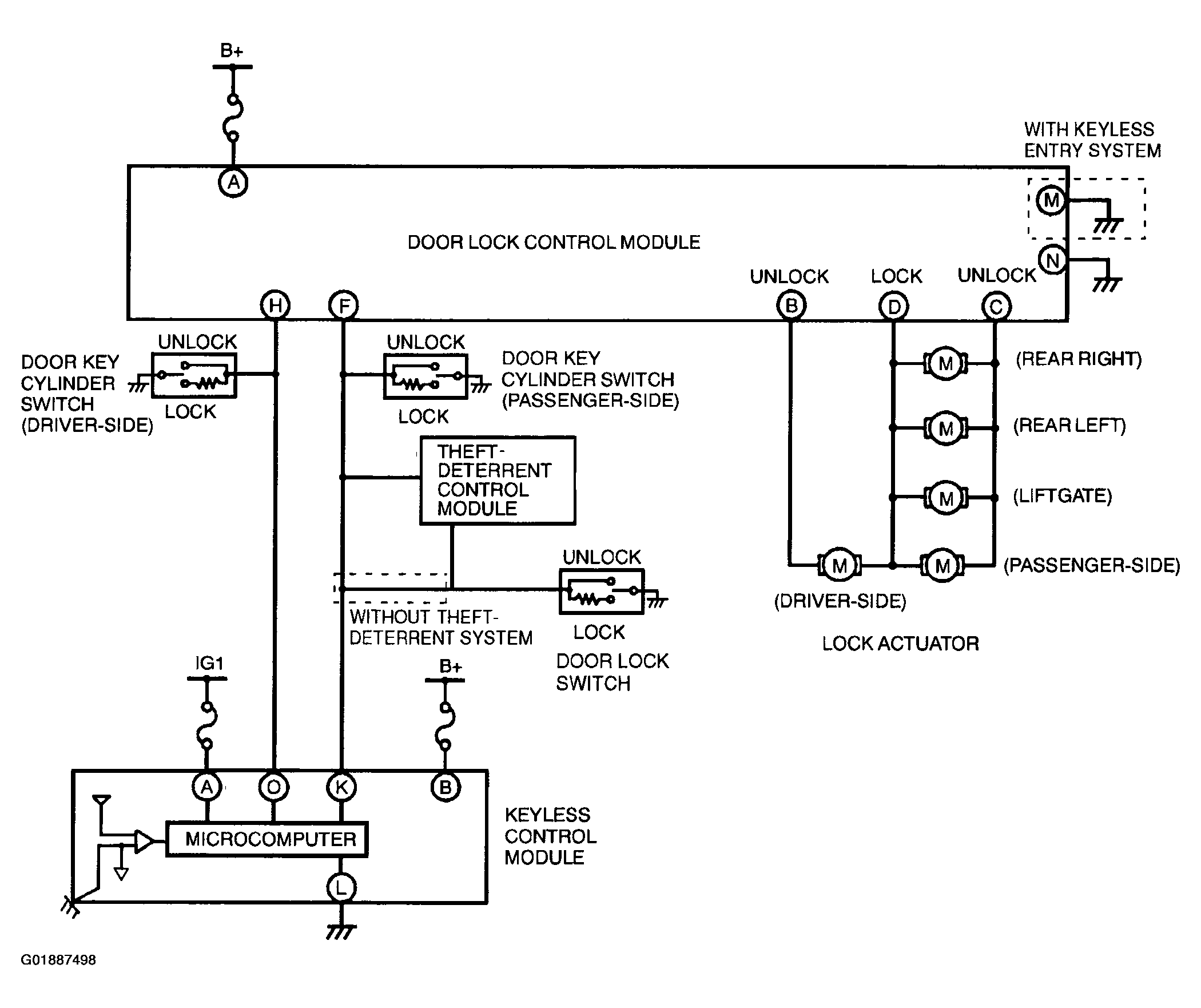

Fig 1: Power Door Lock System Wiring Diagram

G01887498

Courtesy of MAZDA MOTORS CORP.
