Home >> Mazda >> 2003 >> MPV ES >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security System And Locks System >> Power Door Lock System Location Index

Power Door Lock System Location Index

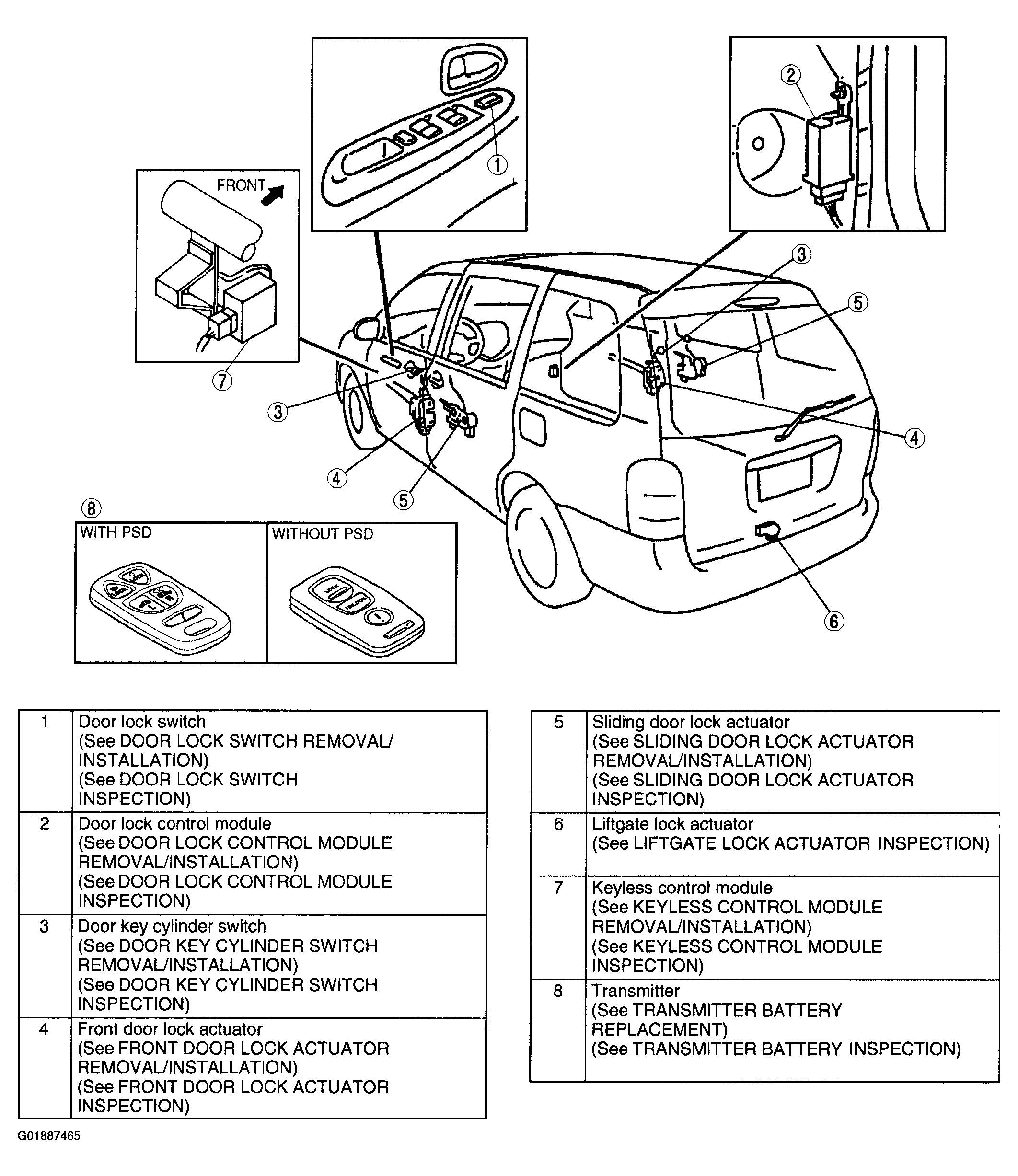

Fig 1: Locating Power Door Lock System Component Index

G01887465

Courtesy of MAZDA MOTORS CORP.
