Liftgate Lock And Opener Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. To remove the liftgate outer handle, remove the rear finisher.
  4. Remove in the order indicated in the figure below.
  5. Install in the reverse order of removal.

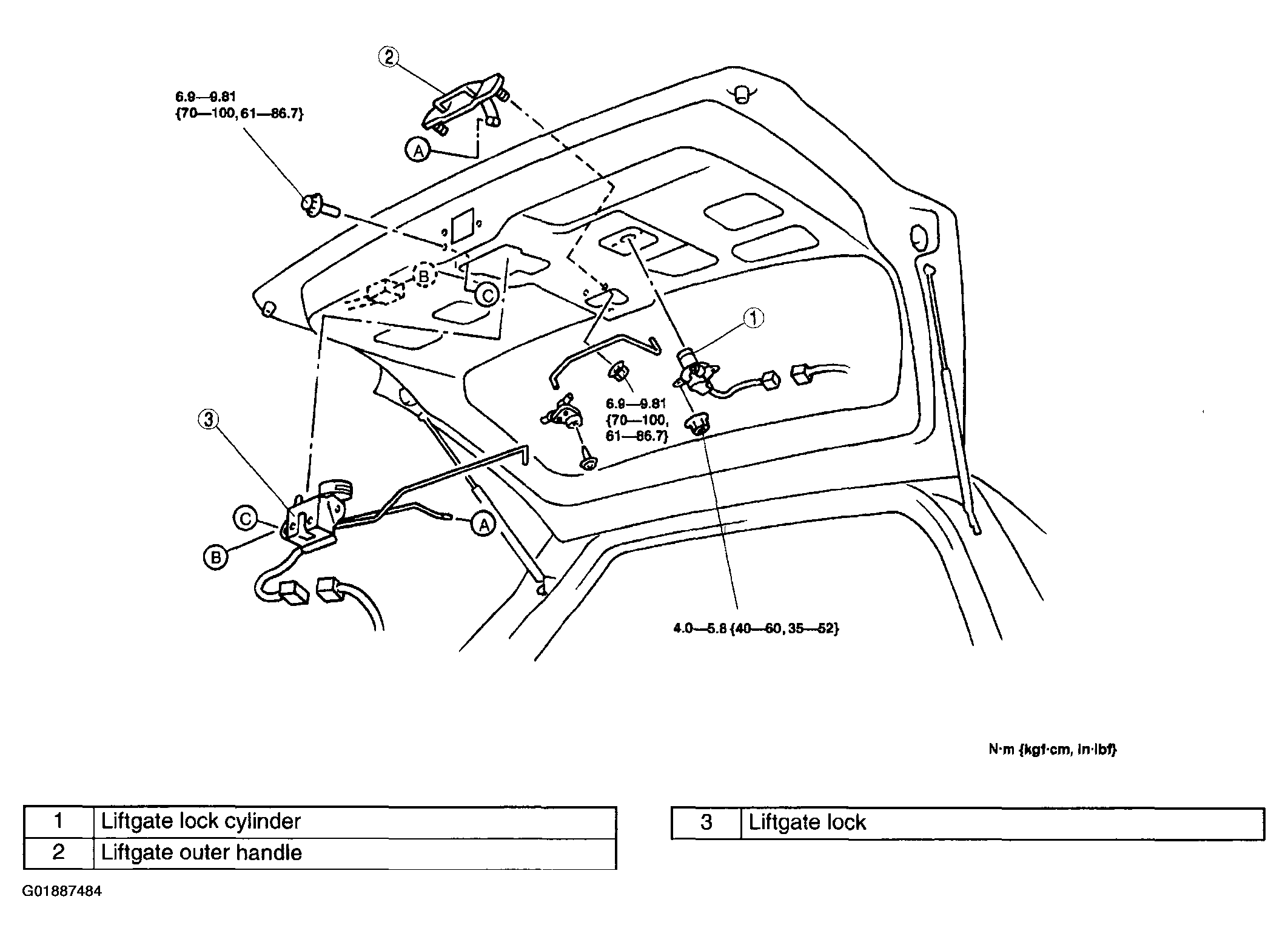

    Fig 1: Exploded View Of Liftgate Lock And Opener
    G01887484Courtesy of MAZDA MOTORS CORP.
