Immobilizer System Location Index
Immobilizer System Location Index

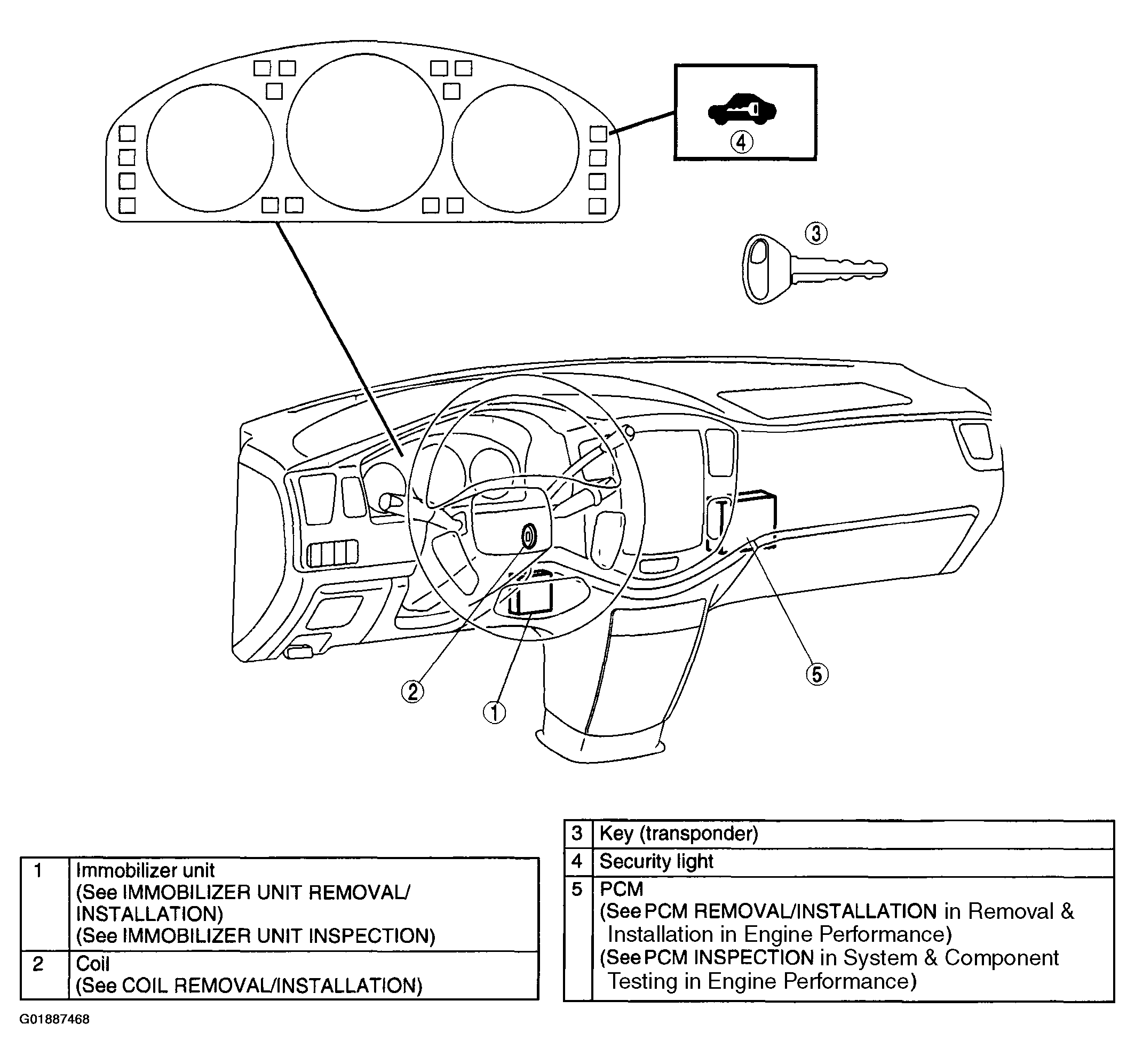

Fig 1: Immobilizer System Component Index
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
