Hood Lock And Opener Removal/Installation

  1. Remove in the order indicated in the figure below.
    Fig 1: Hood Lock And Opener Component Table
    G01887519Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.

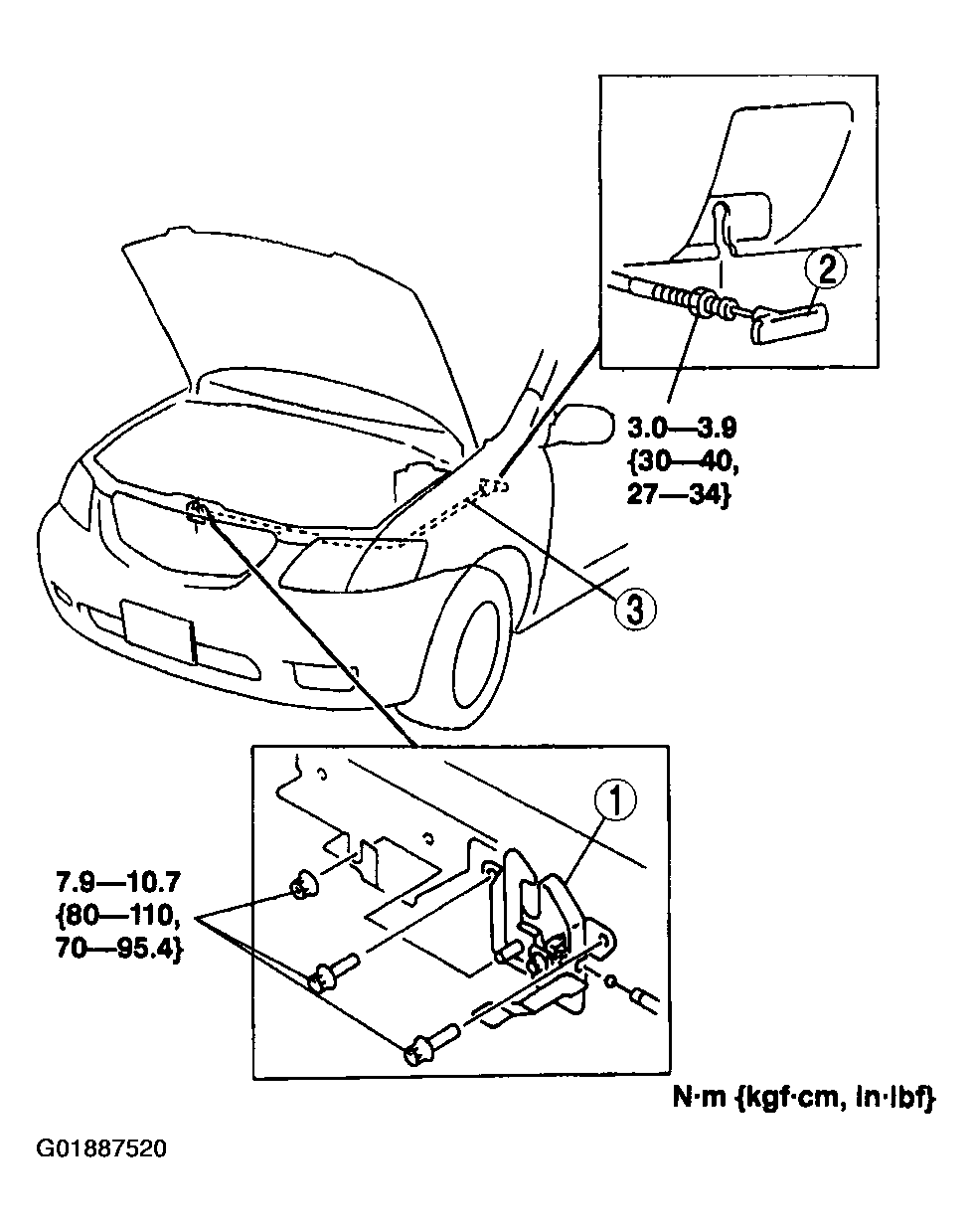

    Fig 2: Locating Hood Lock And Opener Component
    G01887520Courtesy of MAZDA MOTORS CORP.
