Socket Installation Note

  1. Hook the harness as shown in the figure.

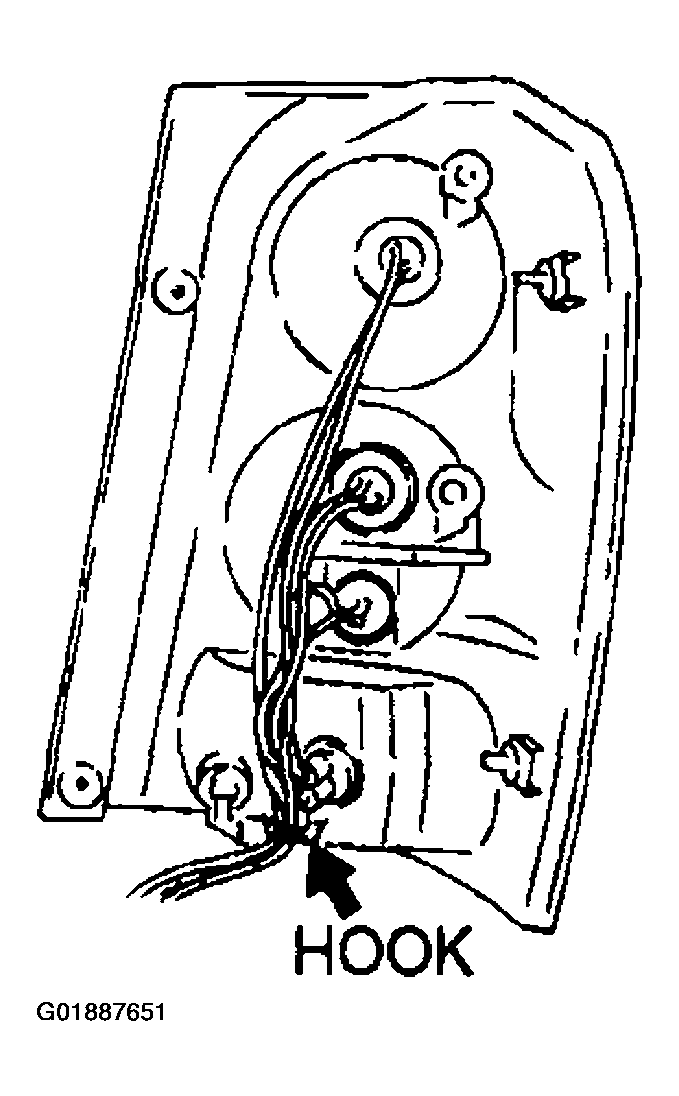

    Fig 1: Locating Hook
    G01887651Courtesy of MAZDA MOTORS CORP.
