Light Switch Inspection
>>
Headlight switch
Headlight switch

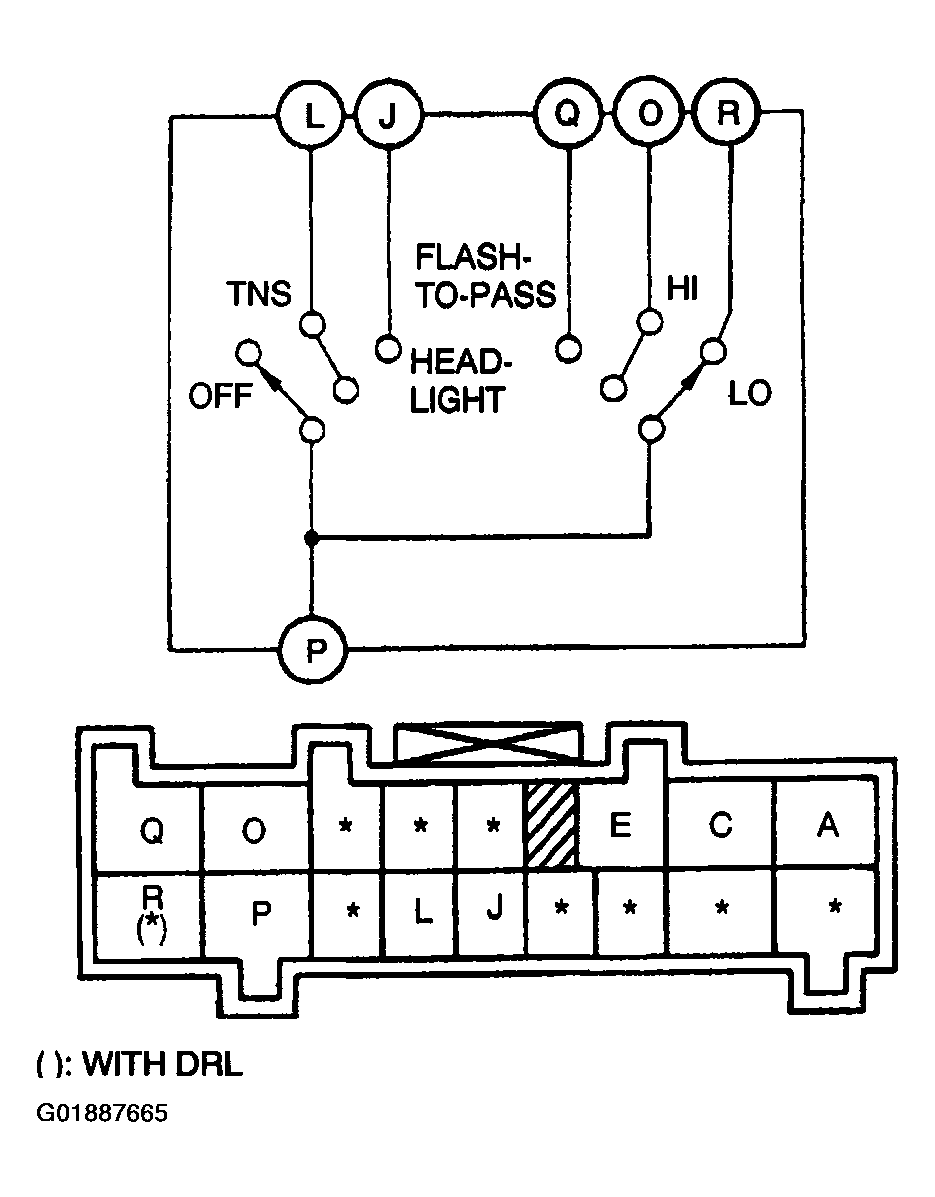

Fig 1: Inspecting Headlight Switch (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

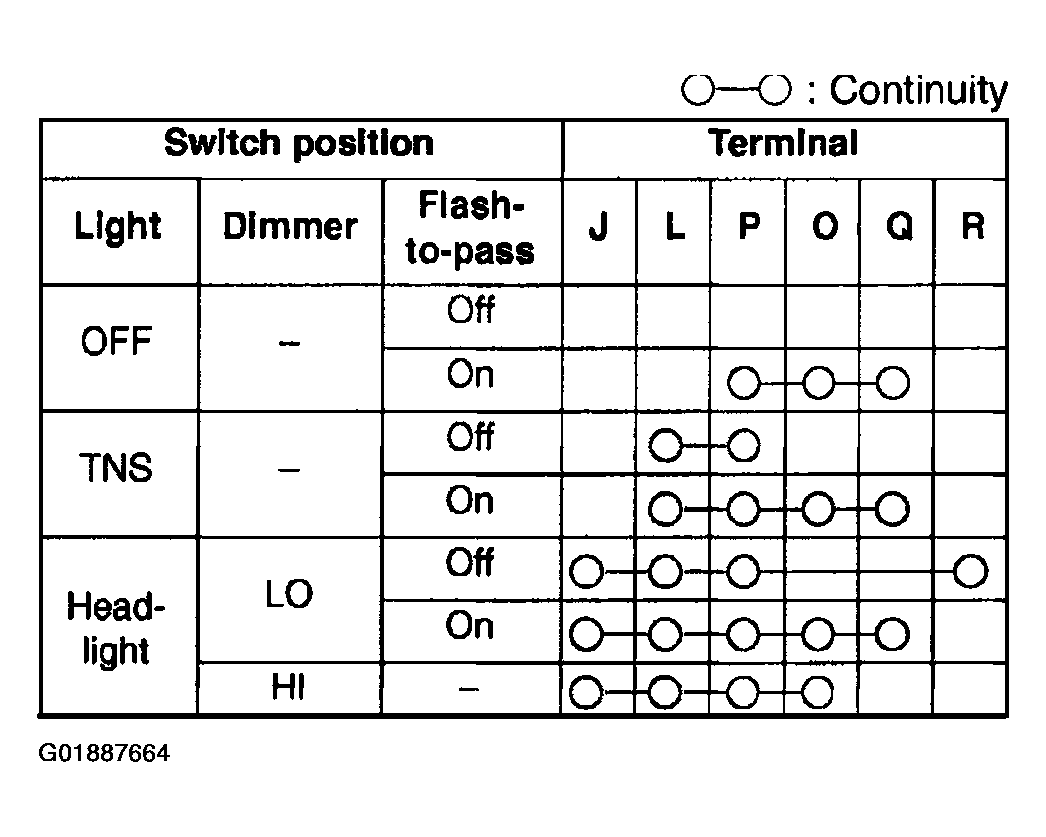

Fig 2: Inspecting Headlight Switch (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
