Lens Removal Note

  1. Insert a tape-wrapped flathead screwdriver into the service hole.
  2. Push the hooks to remove the lens.

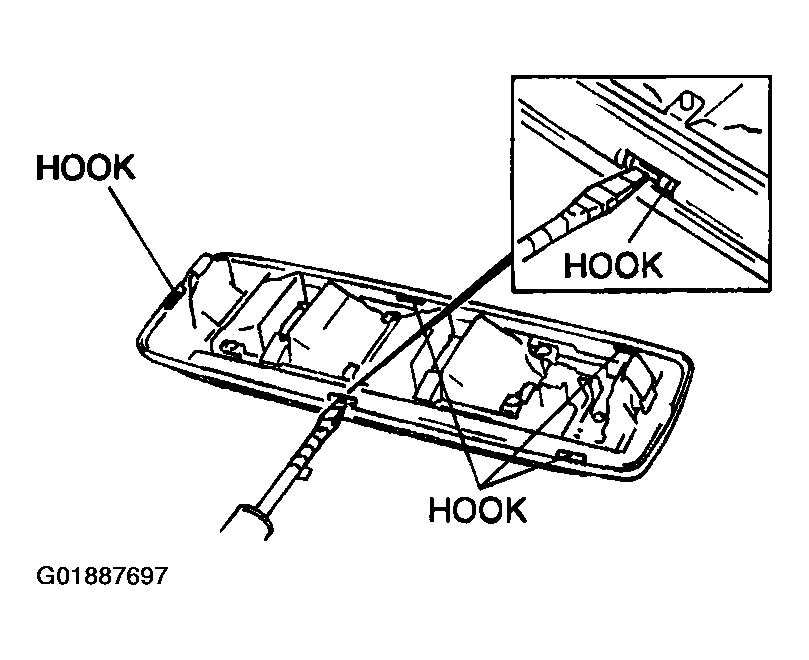

    Fig 1: Removing Lens
    G01887697Courtesy of MAZDA MOTORS CORP.
