Woofer Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the driver-side rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figures.

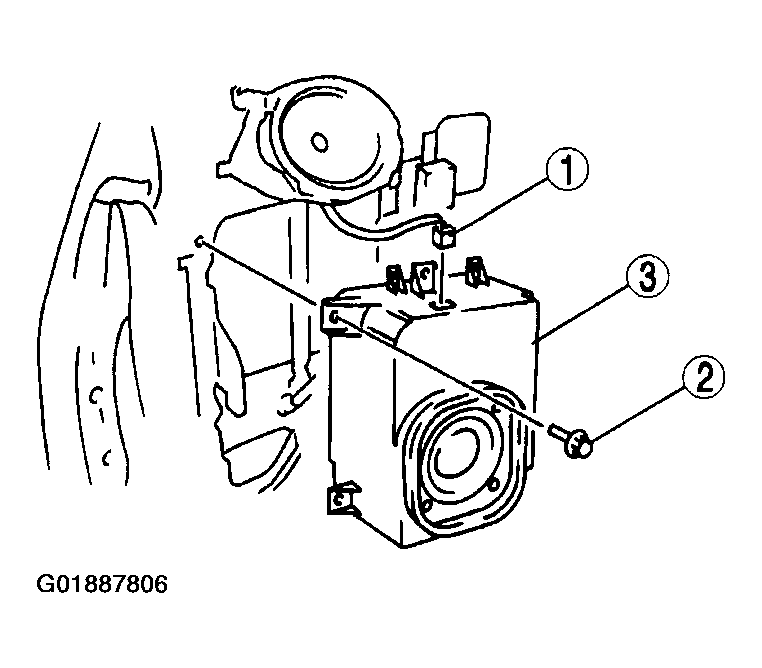

    Fig 1: Removing Woofer
    G01887806Courtesy of MAZDA MOTORS CORP.
    Fig 2: Woofer Removal Sequence
    G01887805Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
