Cruise Actuator Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the engine cover.
  3. Remove in the order indicated in the illustration.

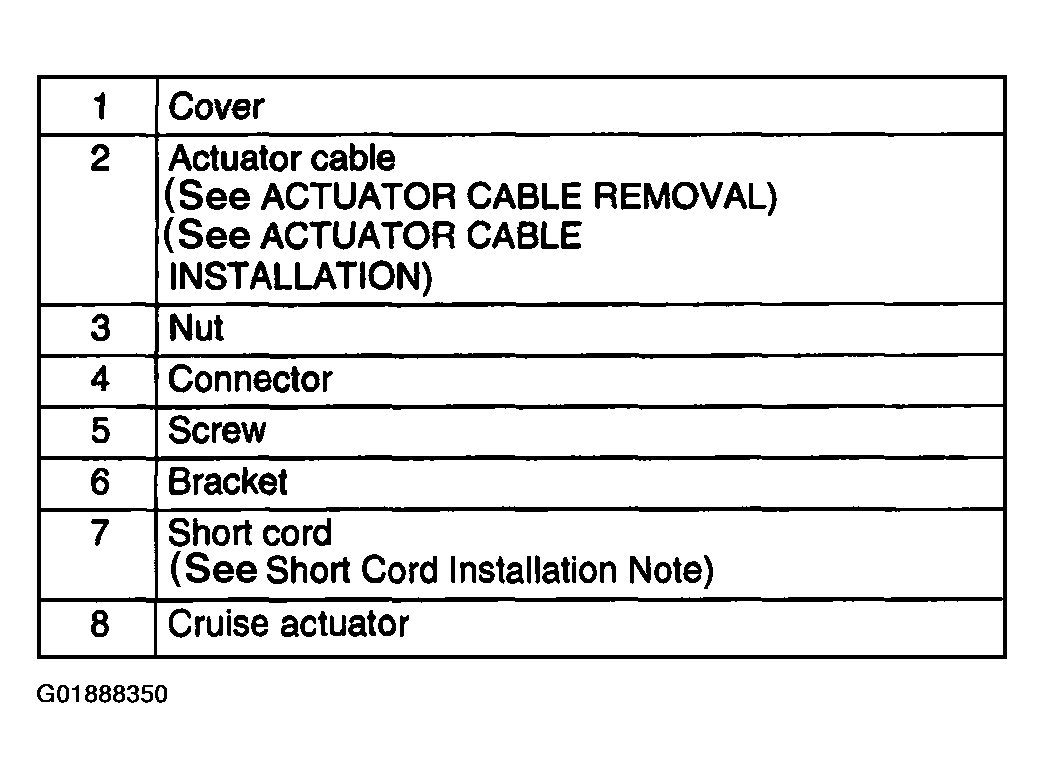

    Fig 1: Cruise Actuator Specification Chart
    G01888350Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

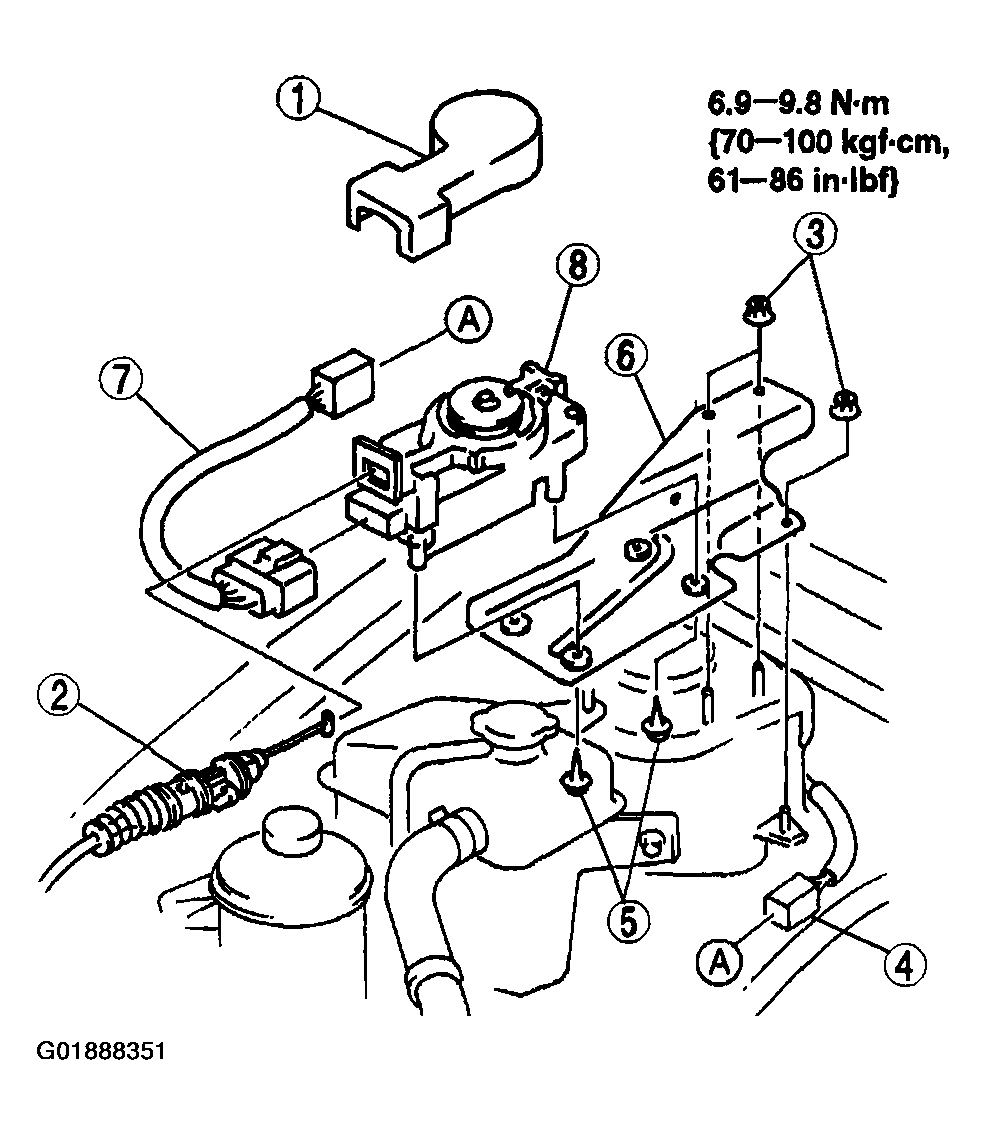

    Fig 2: Exploded View Of Cruise Actuator
    G01888351Courtesy of MAZDA MOTORS CORP.
