Actuator Cable Removal

  1. Remove the cover from the cruise actuator.
  2. Remove the plug hole plate (engine cover) from top of engine.
  3. Move the throttle in the direction of the arrow and hold.
  4. Remove the end fitting of the actuator cable from the throttle.
    Fig 1: Removing End Fitting Of Actuator Cable From Throttle
    G01888356Courtesy of MAZDA MOTORS CORP.
  5. Squeeze the hooks of the grommet, and remove the actuator cable.

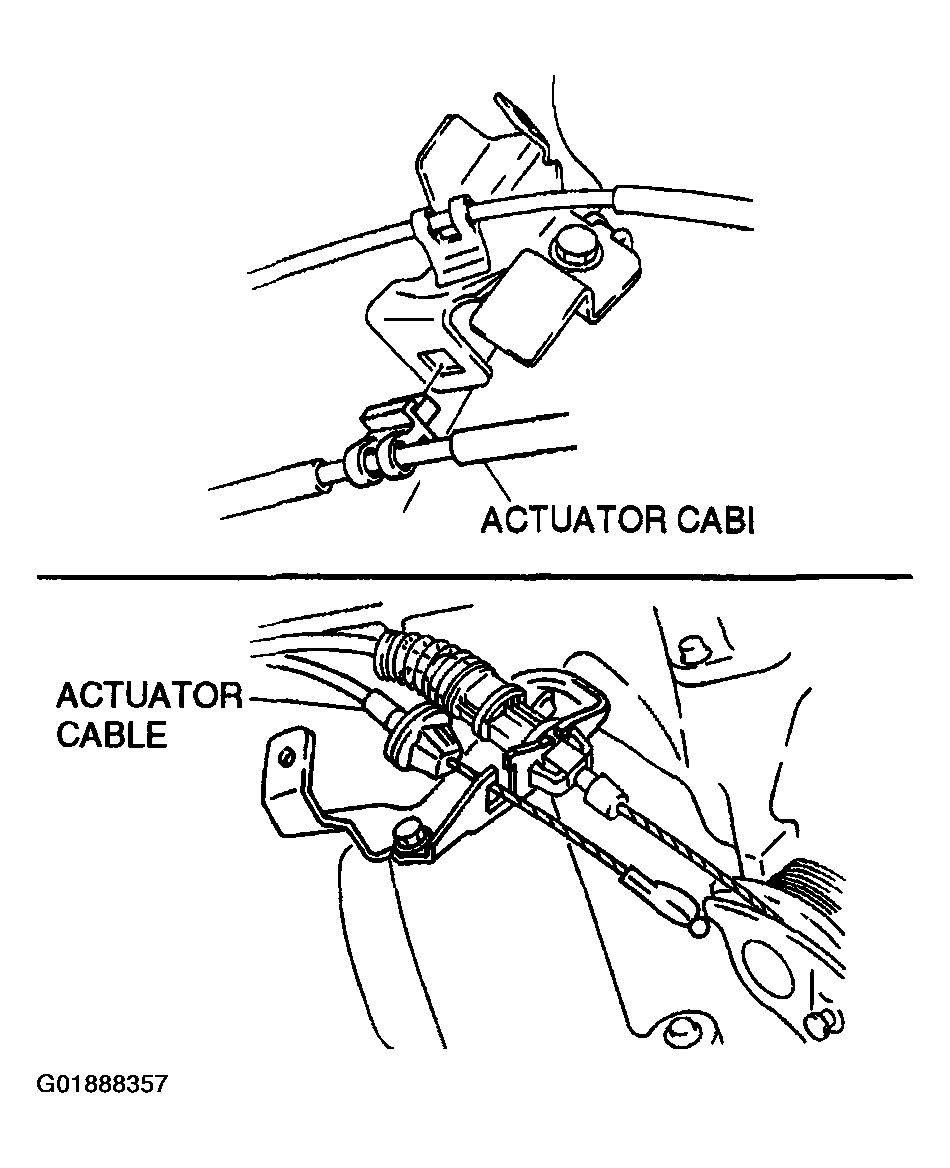

    Fig 2: Removing Actuator Cable
    G01888357Courtesy of MAZDA MOTORS CORP.
  6. Remove the end fitting of the actuator cable from the cruise actuator.
    Fig 3: Removing End Fitting Of Actuator Cable From Cruise Actuator
    G01888358Courtesy of MAZDA MOTORS CORP.
  7. Squeeze the hooks of the grommet, and remove it from the cruise actuator.
  8. Remove the actuator cable.

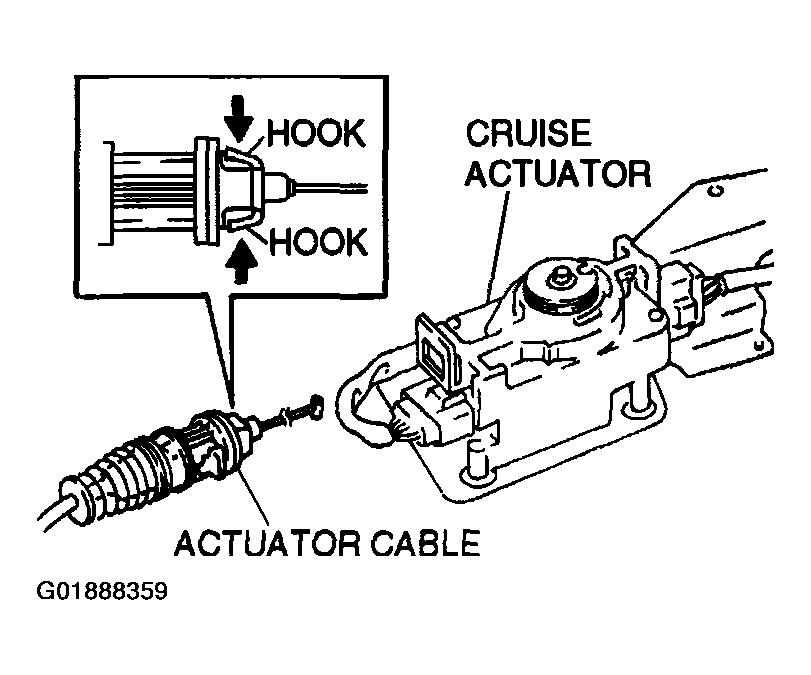

    Fig 4: Removing Actuator Cable
    G01888359Courtesy of MAZDA MOTORS CORP.
