Actuator Cable Installation

Slide the lock lever in the direction shown by the arrow to unlock the adjuster.
Turn the ratchet ring to release lock in the direction shown by the arrow.

Fig 1: Identifying Slide Lock Lever
Courtesy of MAZDA MOTORS CORP.

Fig 2: Turning Ratchet Ring To Release Lock
Courtesy of MAZDA MOTORS CORP.
Install the actuator cable to the cruise actuator.
CAUTION:
- Due to the possibility of actuator cable damage, make sure there is no twisting in the cable when installing.
Fig 3: Installing Actuator Cable To Cruise Actuator
Courtesy of MAZDA MOTORS CORP.

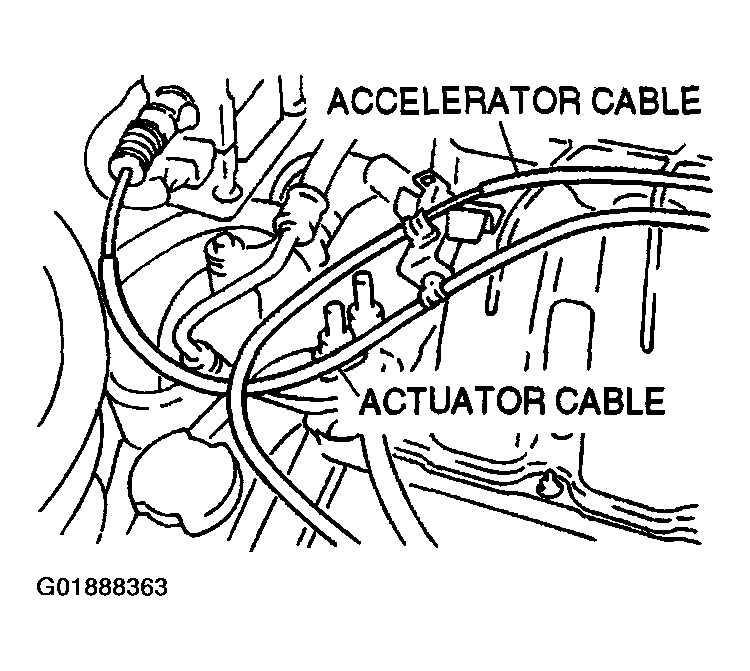

Pass the actuator cable under the accelerator cable.

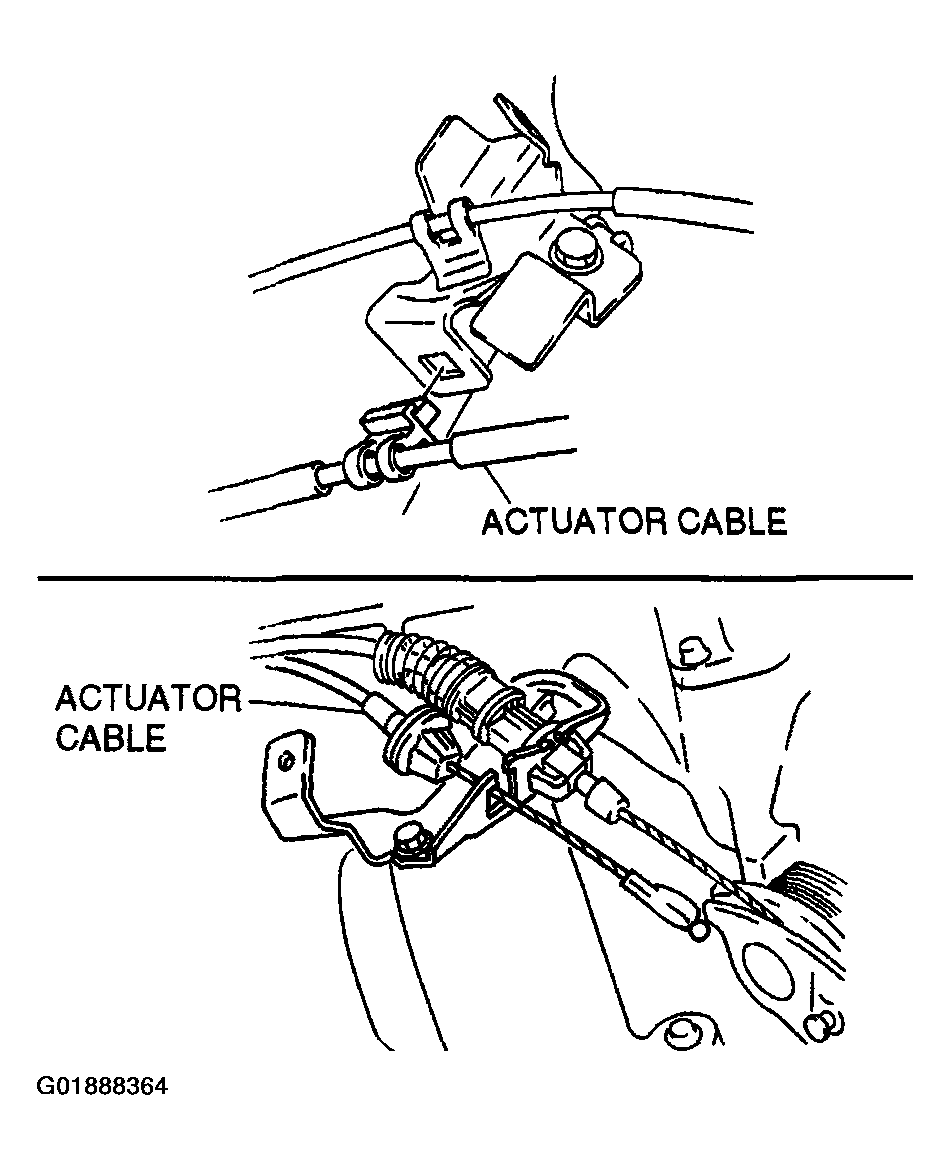

Fig 4: Passing Actuator Cable Under Accelerator Cable
Courtesy of MAZDA MOTORS CORP.
Install the grommets to the cable bracket.

Fig 5: Installing Grommets To Cable Bracket
Courtesy of MAZDA MOTORS CORP.
Move the throttle in the direction of the arrow.
Install the end fitting of the actuator cable to the throttle.

Fig 6: Installing End Fitting Of Actuator Cable To Throttle
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Due to the possibility of actuator cable damage, make sure there is no twisting in the cable when installing.
To adjust the free play, push or pull the actuator cable directly behind the spring two times.

Fig 7: Pushing Or Pulling Actuator Cable Directly Behind Spring Two Times
Courtesy of MAZDA MOTORS CORP.
Turn the ratchet ring in the direction shown by the arrow to lock it.

Fig 8: Turning Ratchet Ring
Courtesy of MAZDA MOTORS CORP.
Slide the lock lever in the direction shown by the arrow to lock the adjuster.
Install the cover to the cruise actuator.
Install the plug hole plate (engine cover) on top of engine.

Fig 9: Identifying Slide Lock Lever
Courtesy of MAZDA MOTORS CORP.
