Tie Rod Assembly Note

  1. Secure the teeth section of the rack in a vise.
  2. Tighten the tie rod using the SST  .

    Tightening torque

    78-98 N.m {8.0-9.9 kgf.m, 58-72 ft.lbf}

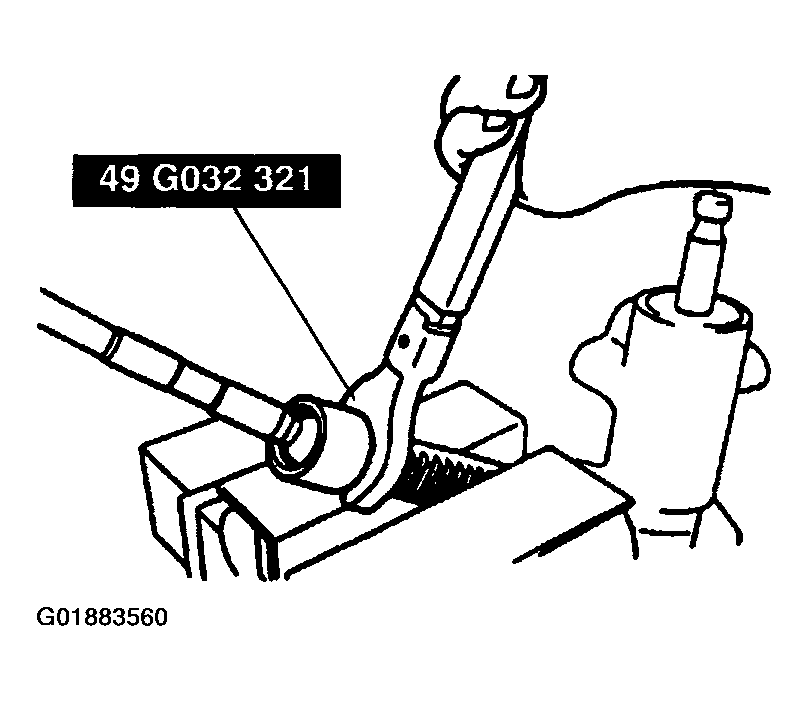

    Fig 1: Tightening Tie Rod
    G01883560Courtesy of MAZDA MOTORS CORP.
  3. Caulk the washer.
