Needle Bearing Assembly Note

  1. Press the needle bearing into the gear housing using the SST  .

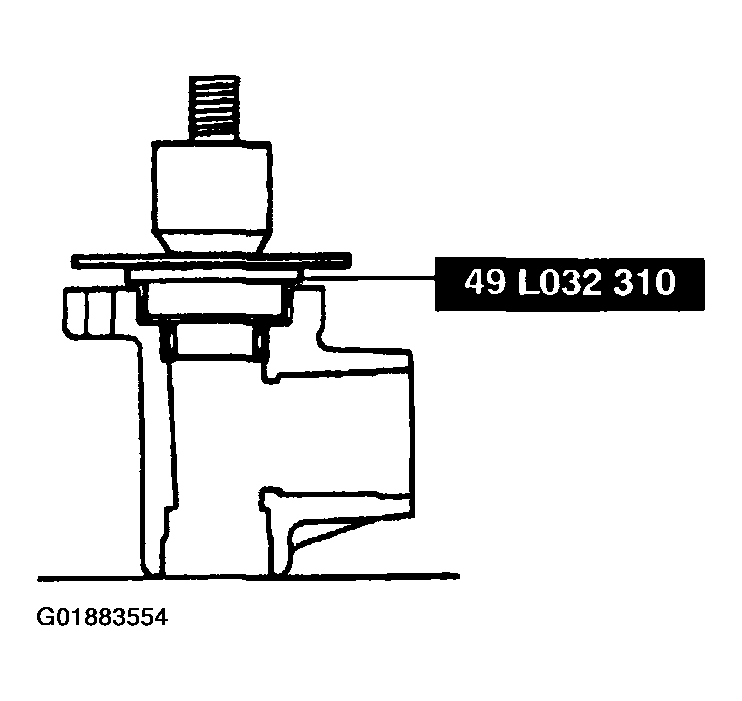

    Fig 1: Pressing Needle Bearing Into Gear Housing
    G01883554Courtesy of MAZDA MOTORS CORP.
  2. Apply grease to the needle bearing.
