Steering Gear And Linkage Assembly: Notes

CAUTION:
  • Place copper plates, rag, or similar material in a vise when securing the mounting bracket portion of the steering gear.
  1. Assemble in the order indicated.

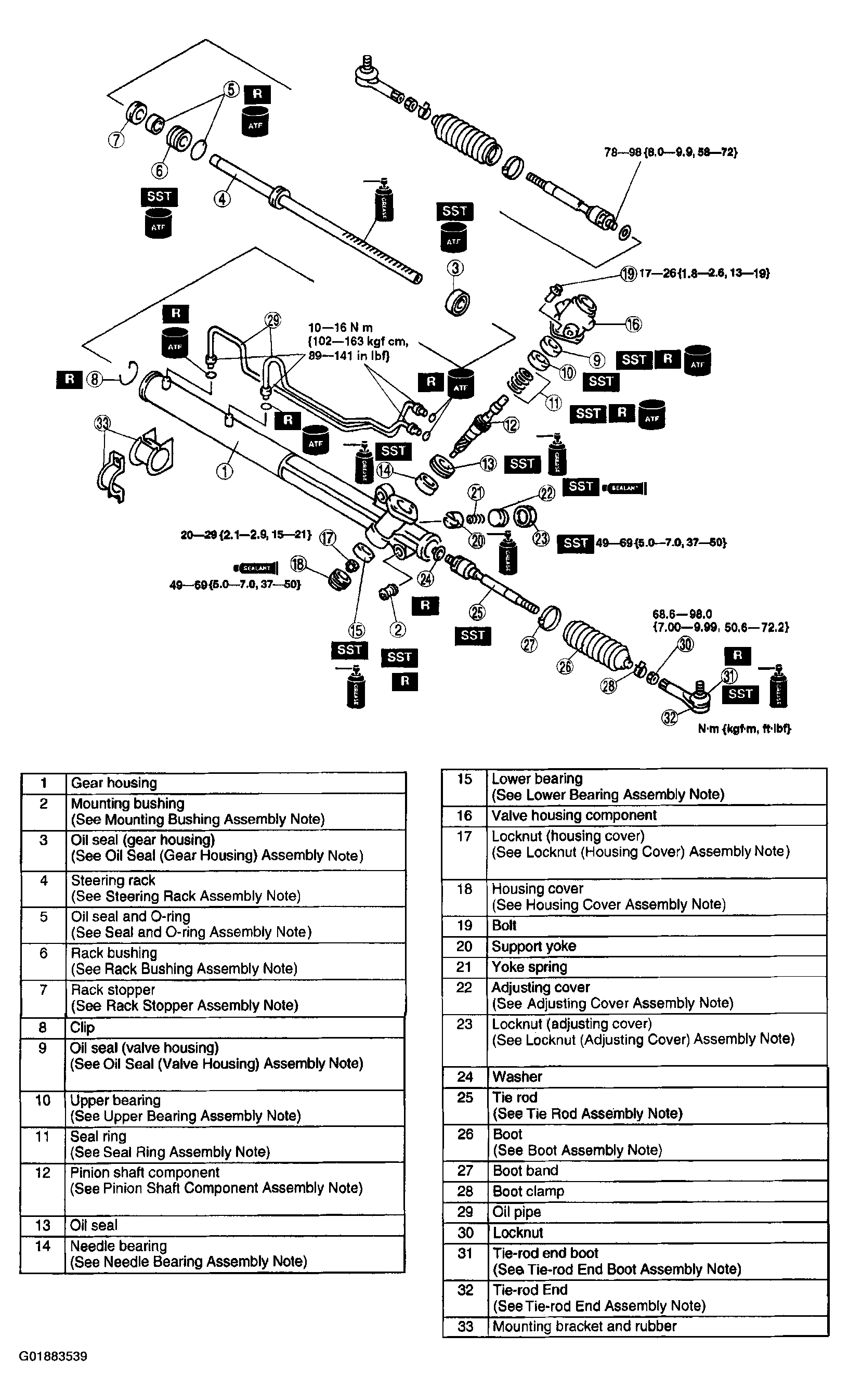

    Fig 1: Assemble Order Of Steering Gear And Linkage
    G01883539Courtesy of MAZDA MOTORS CORP.
