Mounting Bushing Assembly Note

  1. Apply soapy water to the rubber part of the mounting bushing.
  2. Press the mounting bushing until the mounting bushing end comes out completely from the gear housing using the SSTs  and a press.

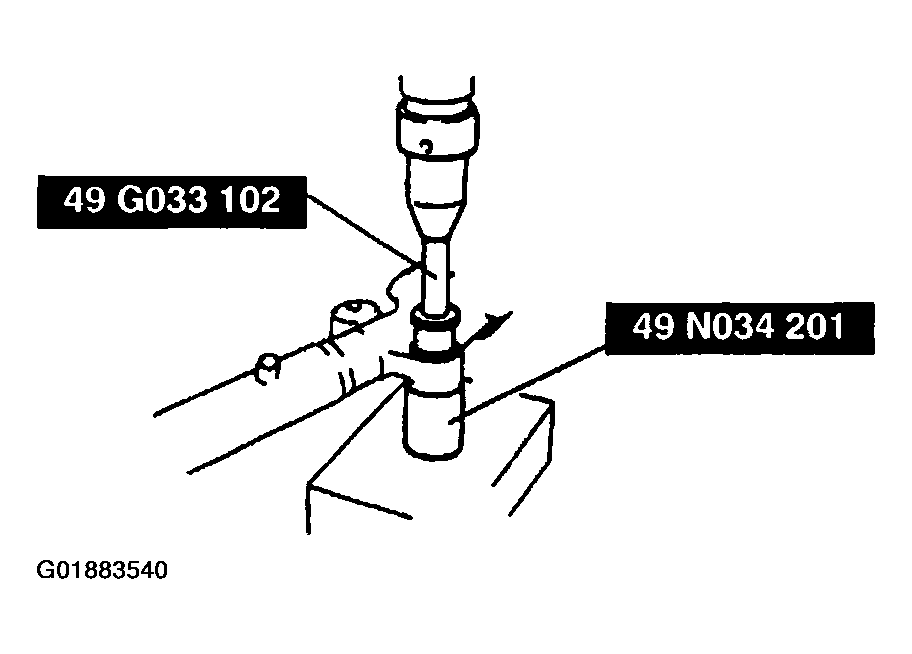

    Fig 1: Installing Mounting Bushing (1 Of 2)
    G01883540Courtesy of MAZDA MOTORS CORP.

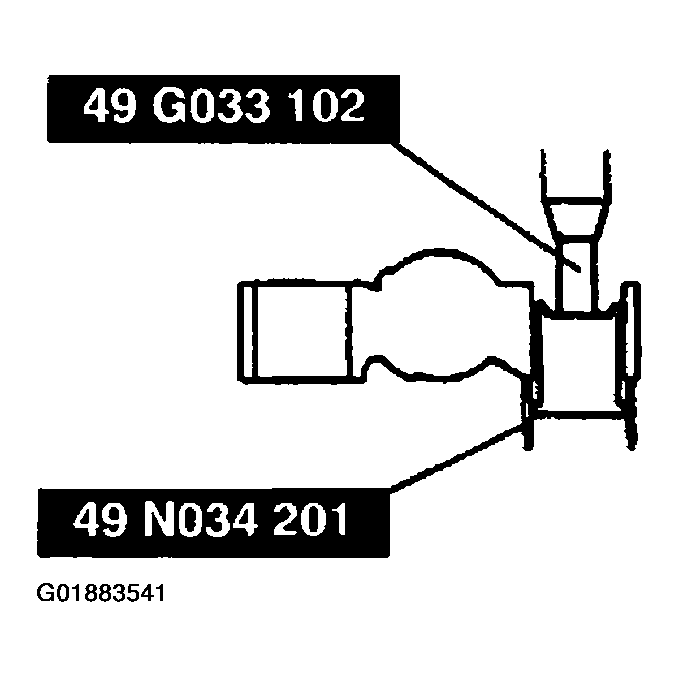

    Fig 2: Installing Mounting Bushing (2 Of 2)
    G01883541Courtesy of MAZDA MOTORS CORP.
  3. Reverse the gear housing, then press the mounting bushing until the mounting bushing end comes out completely from the other side. At this time, mounting bushing end and steel pipe are aligned.

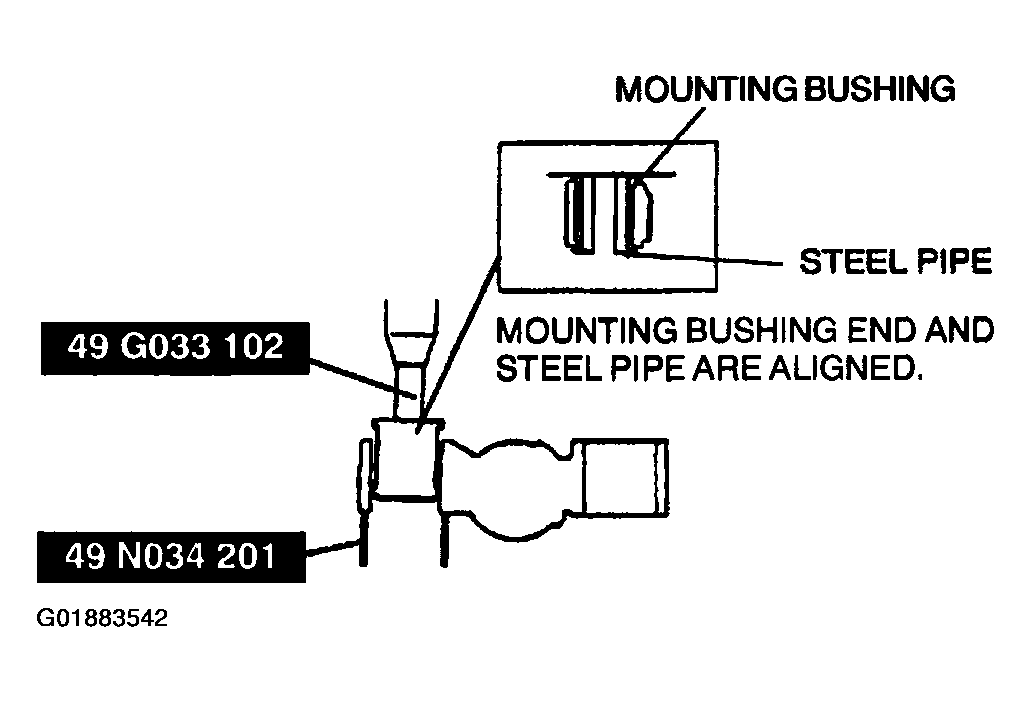

    Fig 3: Aligning Mounting Bushing In Housing
    G01883542Courtesy of MAZDA MOTORS CORP.
