Lower Bearing Assembly Note

  1. Press the lower bearing into the gear housing using the SST  .

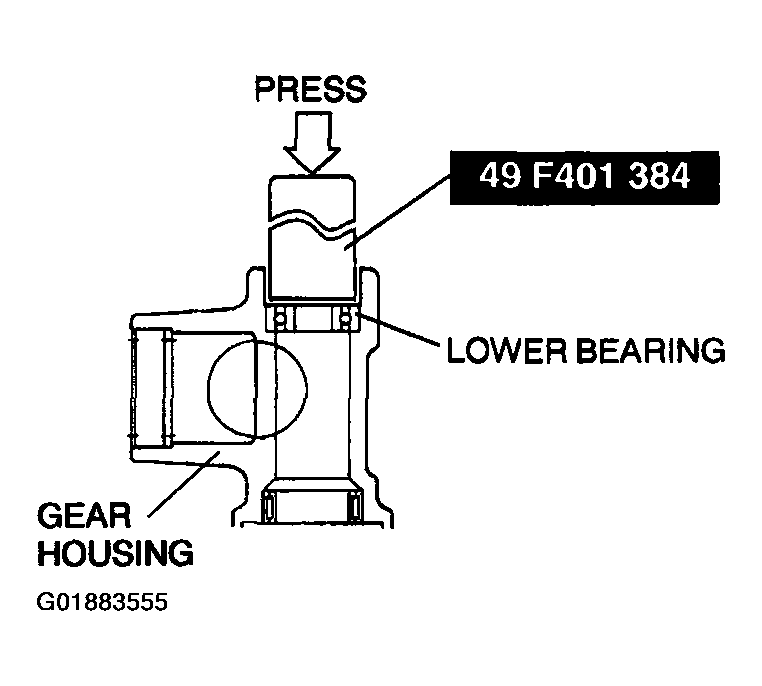

    Fig 1: Pressing Lower Bearing Into Gear Housing
    G01883555Courtesy of MAZDA MOTORS CORP.
