Boot Assembly Note

  1. Install the boot.
  2. Install the boot band onto the large end of the boot as shown.
  3. Verify that the boot is not twisted and dented while moving the rack fully forward and back.

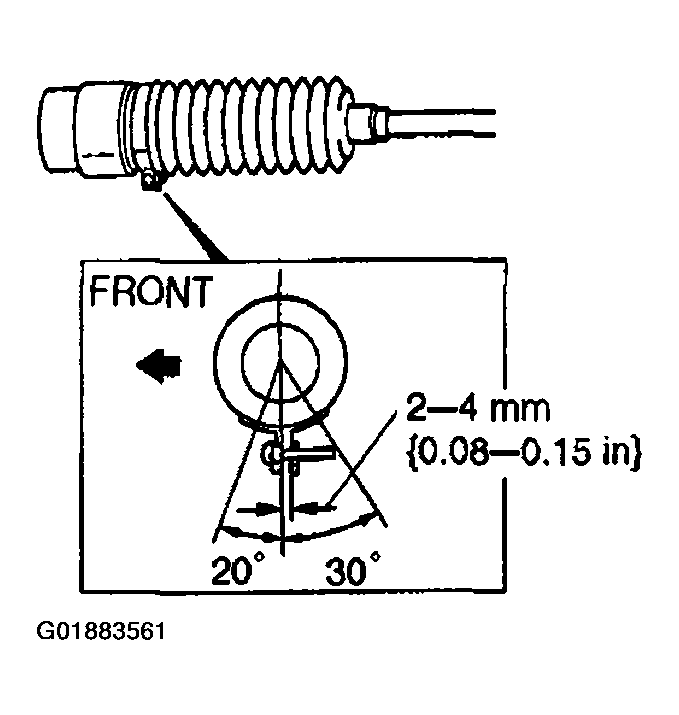

    Fig 1: Installing Boot Band Onto Large End Of Boot
    G01883561Courtesy of MAZDA MOTORS CORP.
