Adjusting Cover Assembly Note

  1. Apply sealant to the threads of the adjusting cover.
  2. Tighten the adjusting cover to a torque of 20-29 N.m {2.0-3.0 kgf.m, 15-21 ft.lbf}  using the SSTs  .
  3. Loosen the adjusting cover about 25-30°  .

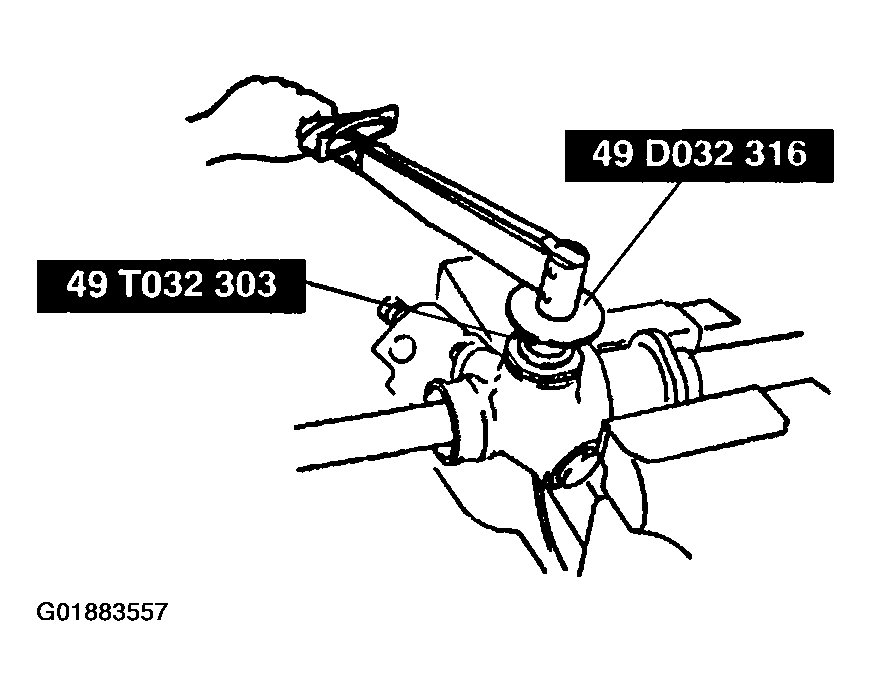

    Fig 1: Tightening Adjusting Cover
    G01883557Courtesy of MAZDA MOTORS CORP.
