Front A/C Unit Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figure below.
  2. Assemble in the reverse order of disassembly.

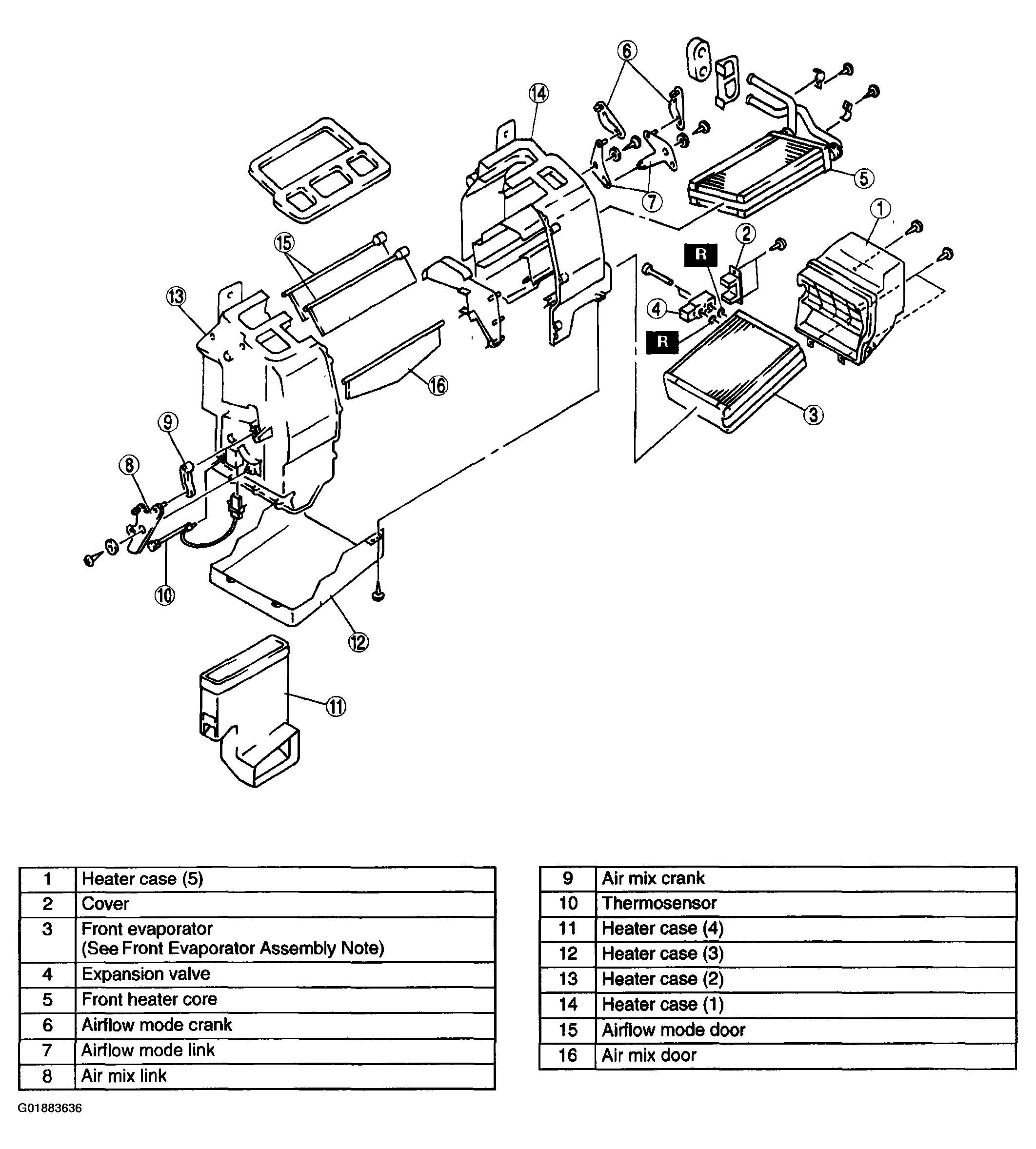

    Fig 1: Exploded View Of Front A/C Unit
    G01883636Courtesy of MAZDA MOTORS CORP.
